Seat Back Frame: Service and Repair

SEAT FRAME REPLACEMENT
1. Remove the following items.
A. Front seat assembly .
B. Recliner cover .
C. Seat back panel .
D. Headrest guide .
E. Seat back cover .
F. Seat cushion .

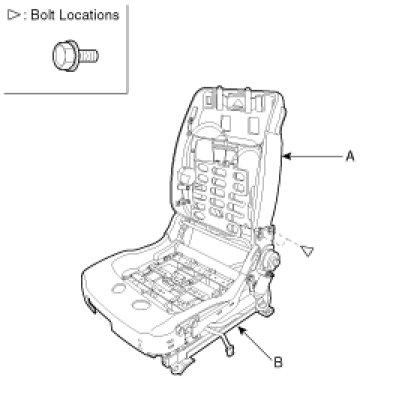

2. After loosening the mounting bolts, then disconnect the seat back frame (A) and seat cushion frame (B).

NOTE:
- Remove the side air bag for replacing side air bag installation seat.
- Be fore service, be fully aware of precautions and service procedure relevant to air bag .





3. Installation is the reverse of removal.

NOTE:
- After installing the OCS, confirm proper system operation: Turn the ignition switch ON, the SRS indicator though be turned on for about six seconds and then go off.
- Telltale lamp will turn on for 4 seconds and be turned off afterward.
