Repair Procedures

REMOVAL AND INSTALLATION

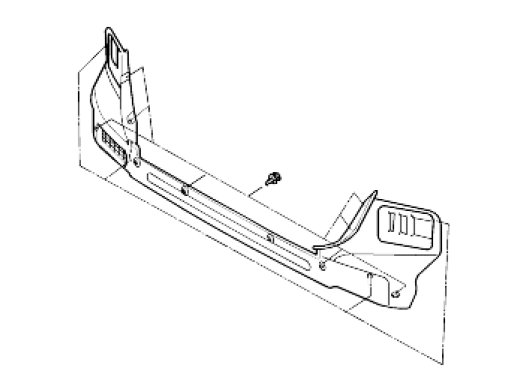

1. Remove luggage partition upper trim.
(1) Remove trunk lid weatherstrip.
(2) Remove luggage partition upper trim fasteners(2) and screws(2).




(3) Remove luggage partition upper trim.

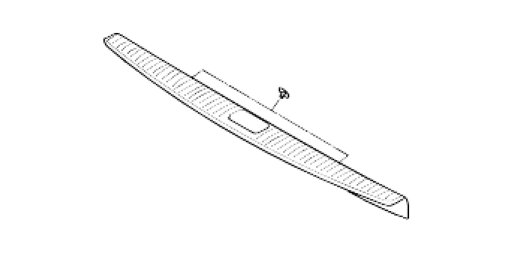

2. Remove rear transverse trim.
(1) Remove rear transverse trim fasteners(2).

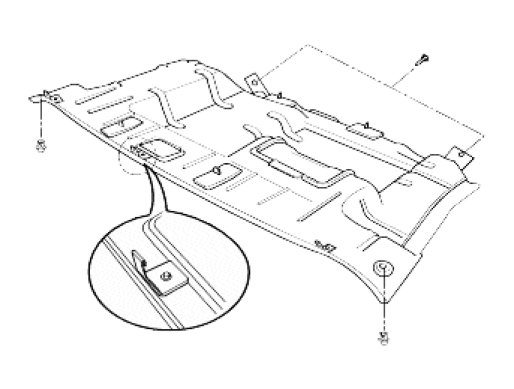

3. Remove luggage rear trim.
(1) Remove luggage rear trim screws(4) and fasteners(10).

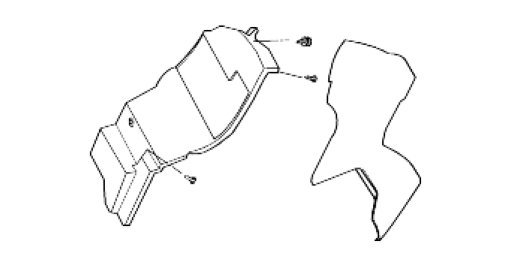

4. Remove luggage side trim(LH).
(1) Remove luggage mat hook.
(2) Remove luggage side trim fasteners(5) and screws(2).




5. Remove luggage side trim(RH).
6. Install in reverse order of removal.
