Repair Procedures

REMOVAL AND INSTALLATION

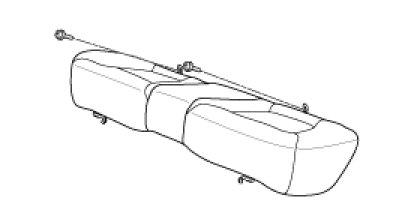

1. Remove rear seat cushion.

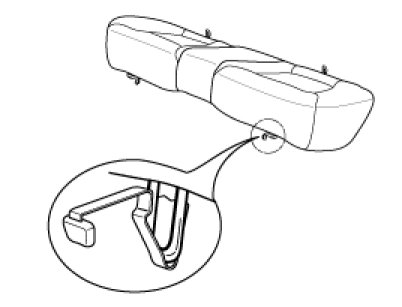

(1) Release seat cushion stopper.




(2) Remove seat cushion bolts(2).

Tightening torque:
17-26Nm (1.7-2.6kg-m, 12.3-18.8lb-ft)






(3) Disconnect seat cushion connector.
2. Remove rear seatback.
(1) Remove seat back bolts(4).

Tightening torque:
17-26Nm (1.7-2.6kg-m, 12.3-18.8lb-ft)






(2) Disconnect seatback & airbag connector.
(3) Release seatback stopper, and then remove seatback.




3. Remove hi-mounted brake lights.
(1) Remove hi-mounted brake lights screws.




(2) Disconnect hi-mounted brake lights connector.
4. Remove rear pillar trim.
(1) Remove rear pillar trim blanking cover.
(2) Remove rear pillar trim screw(1).

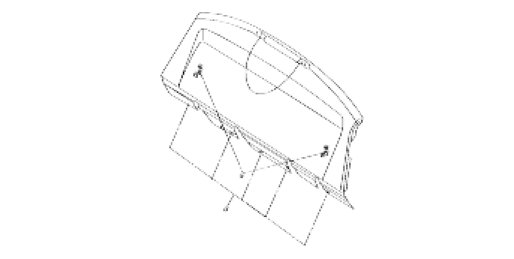

5. Remove package tray.

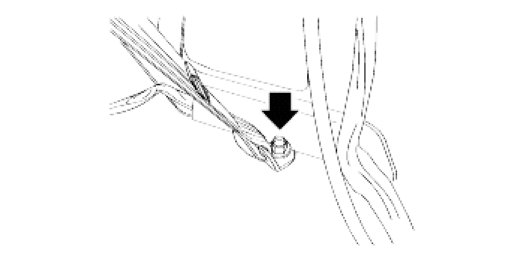

(1) Remove rear seat belt lower anchor bolt(1).

Tightening torque:
40-55Nm (4.0-5.5kg-m, 28.9-39.8lb-ft)






(2) Remove package tray screws(5).




6. Install in reverse order of removal.
