Trunk / Liftgate Striker: Adjustments

ADJUSTMENT

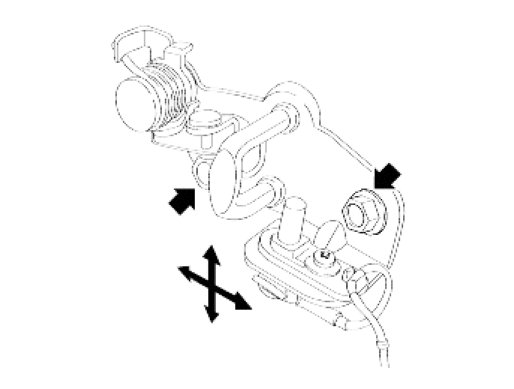

TRUNK LID STRIKER
1. Check that the trunk lid can be closed easily and properly. If there is a problem, loosen the striker mounting bolts and adjust the trunk lid by moving the striker vertically or horizontally.

Tightening torque:
7-11Nm (0.7-1.1kg-m, 5.1-8.0lb-ft)






2. Adjust the rear offset of the door to the body by moving the trunk lid striker vertically.
