Trunk / Liftgate Hinge: Adjustments

ADJUSTMENT

TRUNK LID HINGE
1. Check that the trunk lid can be closed easily and properly. If there is a problem, open the trunk lid and tighten the trunk lid hinge mounting bolts.

Tightening torque:
22-27Nm (2.2-2.7kg-m, 15.9-19.5lb-ft)

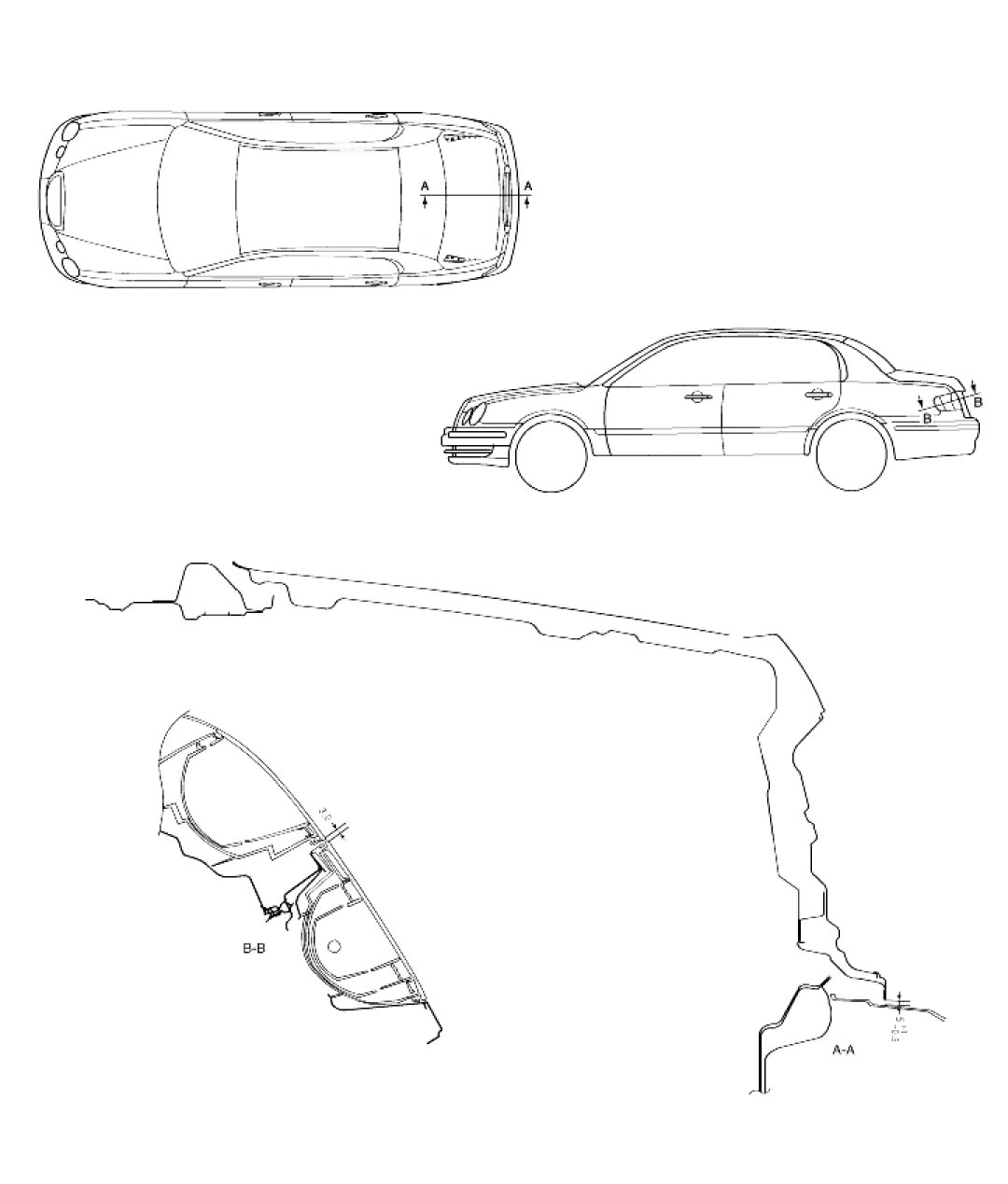

2. To adjust the trunk lid-to-body offset, loosen the trunk lid hinge mounting bolts and make the adjustment.
