Repair Procedures

Removal

Audio Head Unit
1. Disconnect the negative (-) battery terminal.

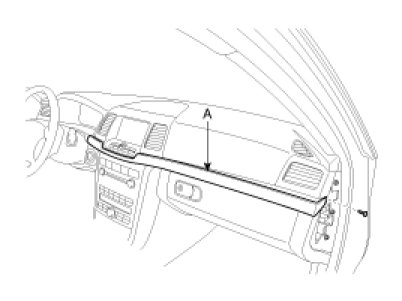

2. Remove the crash pad plate (A).

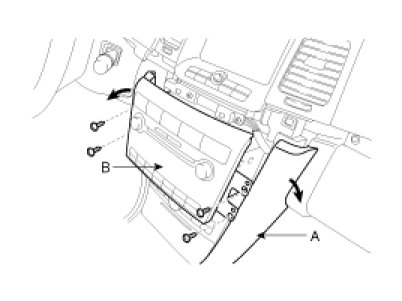

3. Loosen the audio (B) mounting screws after opening both of center fascia side garnishes (A) out a little bit to remove the audio head unit.

NOTE:
- Be careful not to damage the side garnish.

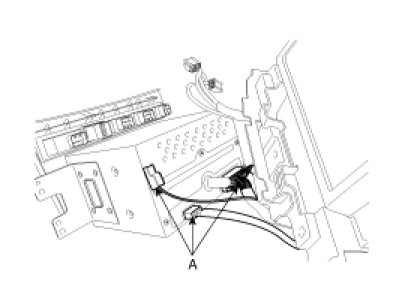

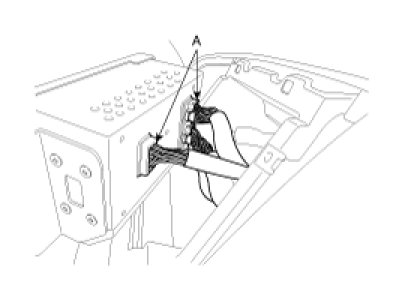

4. Remove the audio head unit after disconnecting the connectors and antenna cables (A).

NOTE:
- Be careful not to damage the connectors and cables when disconnecting them.

Monitor
1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad plate (A).

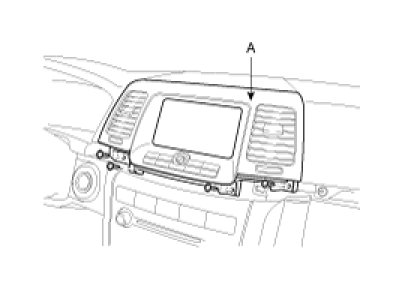

3. Remove the monitor keyboard and air vent (A) after loosening the screws.

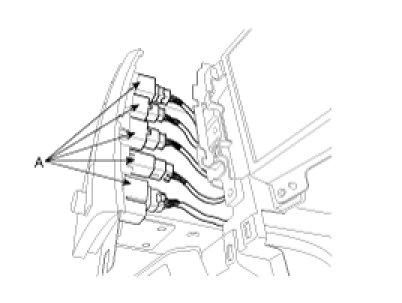

4. Disconnect the monitor keyboard connector (A).

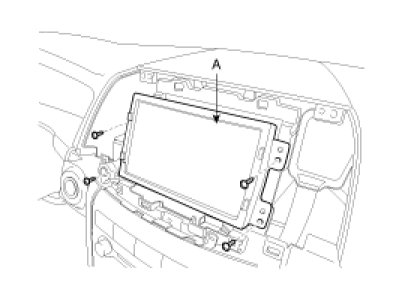

5. Remove the monitor (A) after loosening the screws.

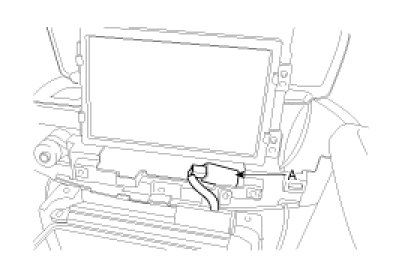

6. Disconnect the monitor connector (A).

Monitor Keyboard
1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad plate (A).

3. Remove the monitor keyboard and air vent (A) after loosening the screws.

4. Disconnect the monitor keyboard connector).
5. Remove the monitor keyboard from the air vent panel.

Installation

Audio Head Unit
1. Install the connectors and antenna cable.
2. Install the audio head unit.
3. Install the center fascia side garnishes.
4. Install the crash pad plate.
5. Reconnect the negative (-) battery terminal.

NOTE:
- Make sure the audio head unit connectors are plugged in properly, and the antenna cable is connected properly.
- Check the audio system.

Monitor
1. Install the monitor.
2. Install the monitor keyboard and air vent.
3. Install the crash pad plate.

NOTE:
- Make sure the audio head unit connectors are plugged in properly, and the antenna cable is connected properly.
- Check the audio system.

Monitor Keyboard
1. Install the keyboard to the air vent panel.
2. Install the monitor keyboard and air vent.
3. Install the crash pad plate.

NOTE:
- Make sure the audio head unit connectors are plugged in properly, and the antenna cable is connected properly.
- Check the audio system.
