Auxiliary Input / Output Jack: Service and Repair

Removal

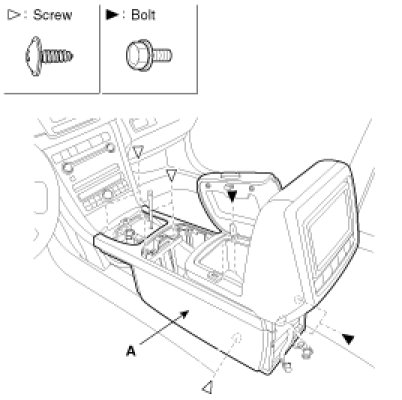

1. Remove the floor console (A).




2. Disconnect the connector from the floor console.

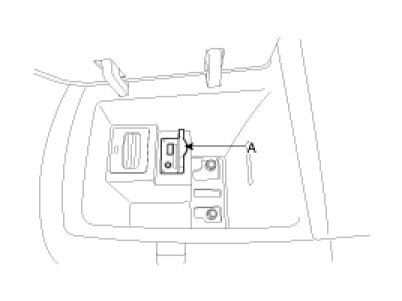

3. Remove the multi media jack (A) from the floor console.






Installation

1. Install the Multi media jack.
2. Reconnect the connector
3. Install the floor console.
