Component Inspection

Component Inspection

1. Check coil antenna.
(1) Ignition "OFF"
(2) Disconnect SMARTRA.

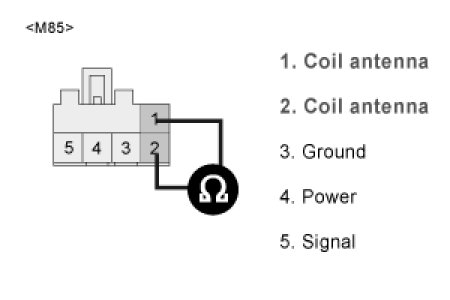

(3) Measure resistance between terminal "1" and "2" of SMARTRA.
A. Specification : Approx 8.5 Ohms




(4) Is the measured resistance within specifications?
YES
- Go to "Check SMARTRA" procedure
NO
- Check for open or short in antenna coil. Repair as necessary and go to "Verification of Vehicle Repair" procedure.
2. Check SMARTRA
(1) IGN "ON" & Engine "OFF"
(2) Neutralize "SMARTRA" and Register transponder key by scantool.

CAUTION:
** Pin code is required to Neutralize SMARTRA and to Register transponder key.

(3) Are Neutralizing and Registering completed normally?
YES
- Perform all the key teaching procedure with scantool. (All the keys must be retaught) and then, go to "Verification of Vehicle Repair" Procedure.

CAUTION:
** Never change the password after SMARTRA is neutralized with scantool Otherwise, Virgin TP only possible to register.

NO
- Substitute with a known-good SMARTRA and check for proper operation.
If the problem is corrected, replace SMARTRA and then go to "Verification of Vehicle Repair" procedure.
