General Information

Component Location





General Description

The cruise control system keeps the vehicle running at a fixed speed until a signal canceling this fixed speed is received. When the main switch is turned on with vehicle in the running mode, the battery voltage is applied to the PCM. When a signal from the control switch is input to the PCM while the vehicle is in state, the PCM controls the ETS motor to make a car go at a steady speed you want. Also, while the system is operating, "CRUISE" indicator lamp in the meter assembly lights up.

DTC Description

If the switch signal's voltage is not within the calibrated ranges when PCM checks the switch signal under detecting condition, PCM sets P0564.

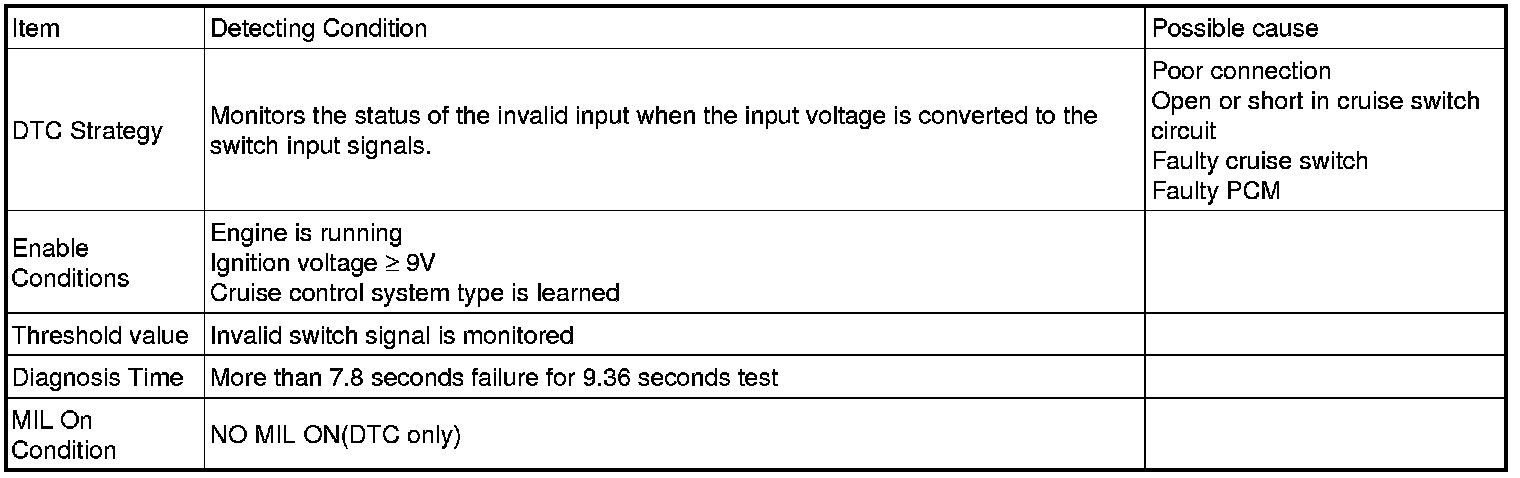

DTC Detecting Condition

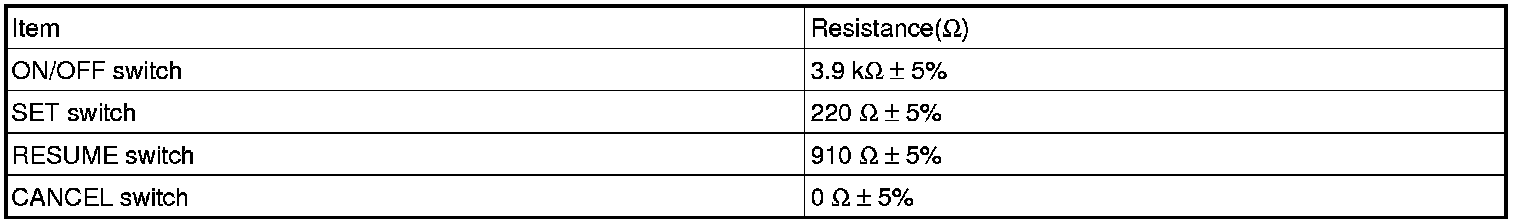

Specification





Schematic Diagram
