1. Check Main relay
(1) IG "OFF".
(2) Disconnect the main relay.

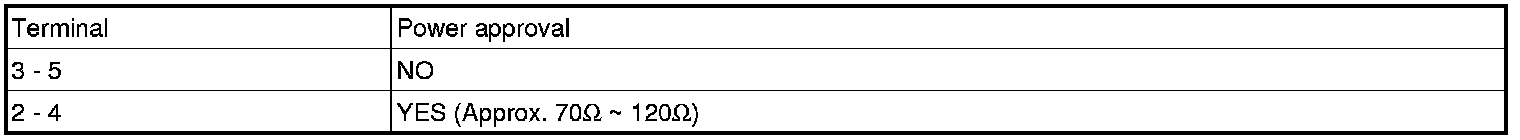

(3) Measure the resistance between terminal 2 and 4 of main relay.
(4) Measure the resistance between terminal 5 and 3 of main relay.
A. Specification : 70 - 120 Ohms









(5) Is the measured resistance within specification?
YES
- Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.
NO
- Substitute with a known - good Main relay and check for proper operation. If the problem is corrected, replace Main relay and go to "Verification of Vehicle Repair" procedure.

CAUTION:
There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by PCM. After testing PCM on the vehicle, use this function to reuse the PCM on the others.
