1. Check Ignition Coil
(1) IG "OFF" and disconnect ignition coil connector.

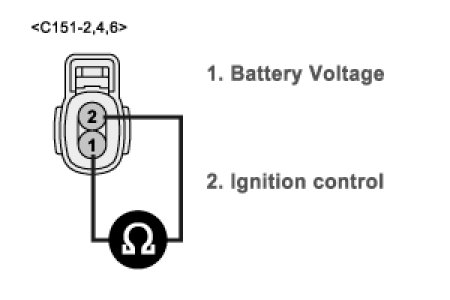

(2) Measure resistance between terminals 1 and 2 of ignition coil connector. (Component side)

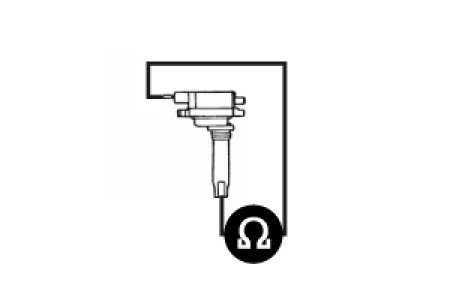

(3) Measure resistance between terminal 1 of ignition coil connector and out terminal of secondary ignition coil.
A. Specification :

















(4) Is the measured resistance within specification?
YES
- Substitute with a known - good PCM and check for proper operation
- If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.
NO
- Substitute with a known - good Ignition Coil and check for proper operation.
- If the problem is corrected, replace Ignition Coil and go to "Verification of Vehicle Repair" procedure.
