Component Inspection

Component Inspection

1. Check FTPS
(1) IG "OFF" and connect scantool to DLC (Data Link Connector).
(2) Monitor "FTPS" parameter with acceleration on service data

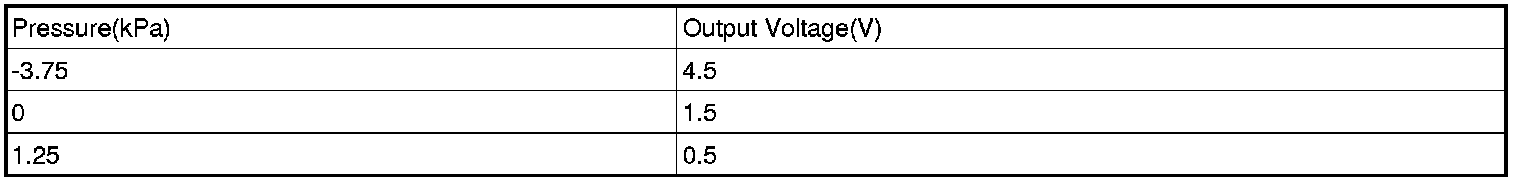

A. Specification :





(3) Does the "FTPS" parameter change after acceleration?
YES
1) Fault is intermittent. Drive the vehicle to satisfy the enable condition then, go to "Verification of Vehicle Repair" procedure.
NO
1) Substitute with a known - good FTPS and check for proper operation.
2) If the problem is corrected, replace FTPS and go to "Verification of Vehicle Repair" procedure.
