W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES
- Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
- Go to "Control Circuit Inspection" procedure

Control Circuit Inspection

1. Check for short to battery in harness
(1) Ignition "OFF"
(2) Disconnect CCV connector

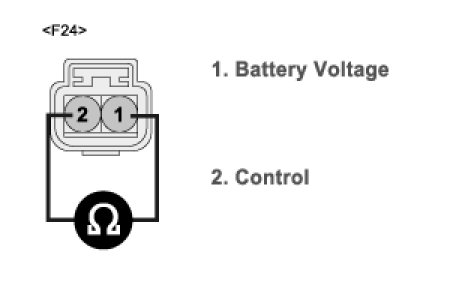

(3) Measure resistance between terminal "2" and "1" of CCV harness connector.
A. Specification : Infinite




(4) Is the measured resistance within specifications?
YES
- Go to "Component Inspection" procedure.
NO
- Check short to battery in harness.
- Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure.
