Monitor DTC Status

Monitor DTC Status

1. Ignition "ON" & Engine "OFF"

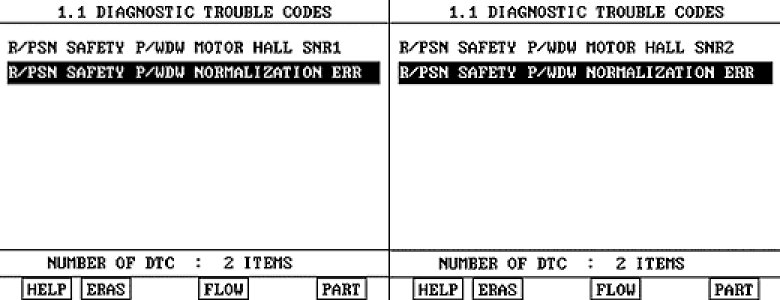

2. Using the scantool, monitor the DTC status.
3. Is the DTC R/PSN SAFETY P.WDW NORMALIZATION ERR with DTC R/PSN SAFETY P/WDW MOTOR HALL SNR 1/2 ERR displayed?




YES
1) Go to "Troubleshooting for DTC R/PSN SAFETY P/WDW MOTOR HALL SNR 1/2 ERR"
NO
1) Go to "Inspection/Repair" procedure.
