Component Inspection

Component Inspection

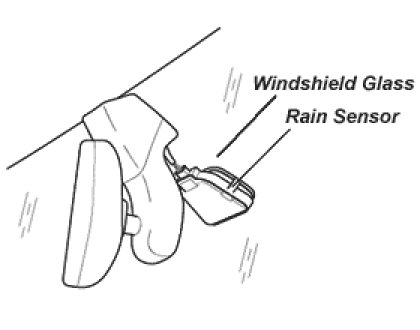

Check Rain Sensor
1. Check attached condition between windshield and rain sensor.




2. Is attached condition normal?
YES
1) Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.
Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
1) Replace rain sensor and Go to "Verification of Vehicle Repair" procedure.
