General Information

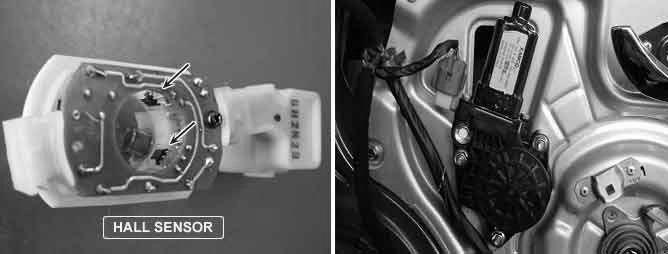

Component Location





General Description

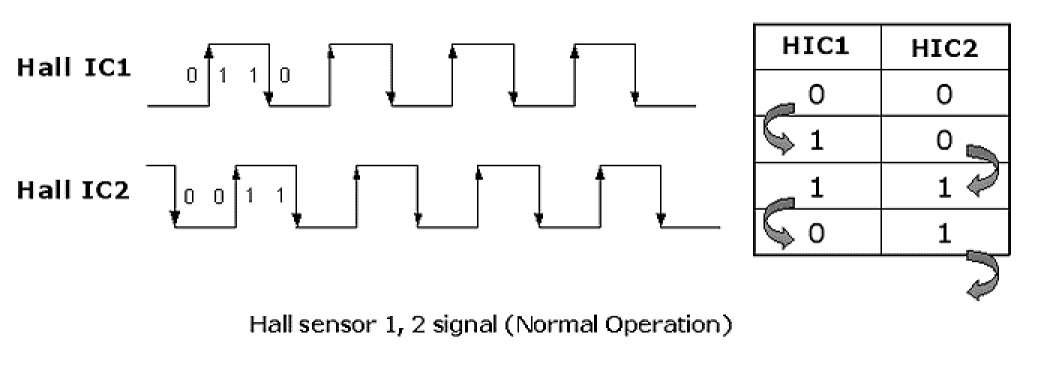

Safety power window ECU detects the position of window through the edge of pulse (rise, fall) that is produced by hall sensor 1 and 2.










DTC Description

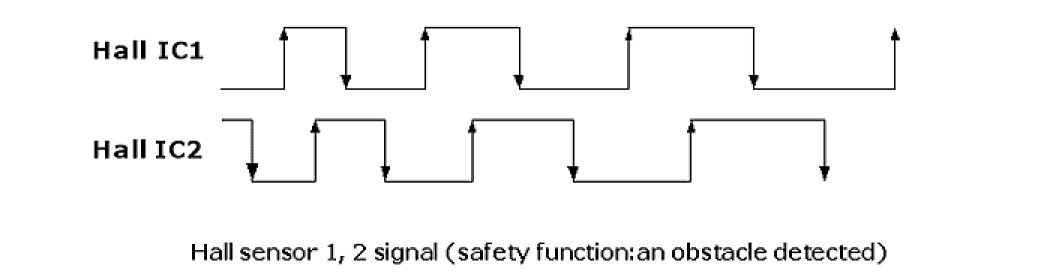

The safety power window ECU sets DTC PSN MOTOR HALL SNR COUNT DIREC. ERR if the ECU detects signal change between hall sensor 1 and hall sensor 2. (The state of operation : window stops after approx. 5 cm of movement)

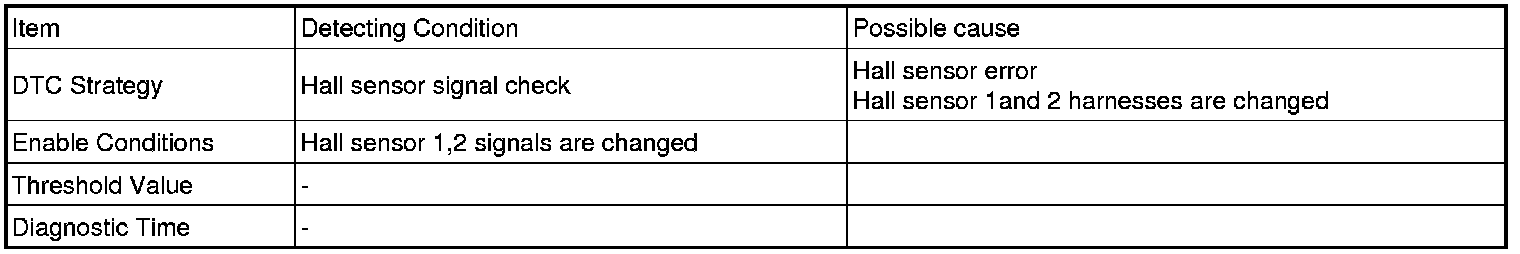

DTC Detecting Condition





Schematic Diagram

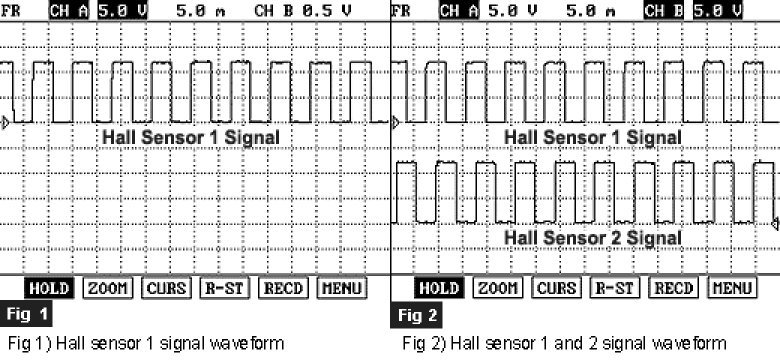

Signal Waveform
