General Information

Component Location





General Description

Low speed control : If low speed is detected while motor is in the protection range, the system is normalized, EEPROM data is valid, and window moves upwards (Auto Up function), moving will be terminated.






DTC Description

The safety power window ECU sets DTC R/DRV SAFETY P/WDW LOW SPEED ERROR if the ECU detects low motor speed. (The state of operation : upward movement will be stopped)

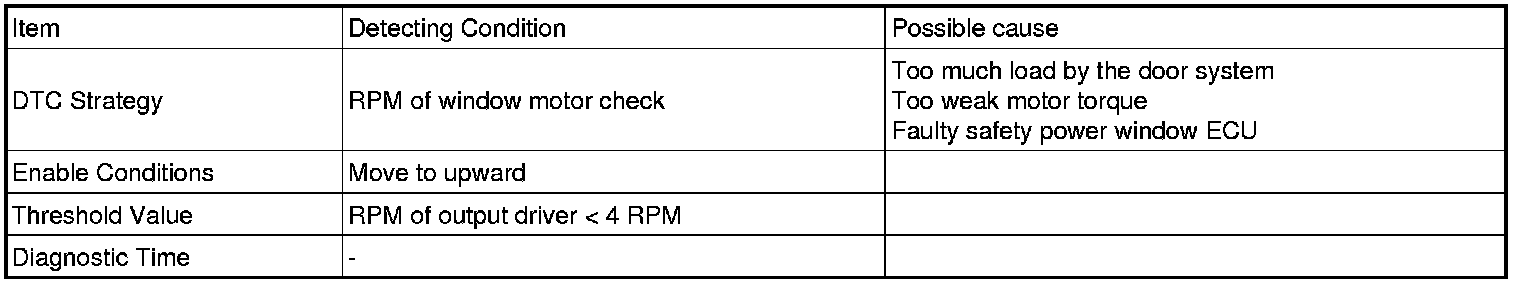

DTC Detecting Condition





Schematic Diagram
