Monitor DTC Status

Monitor DTC Status

1. Ignition "ON" & Engine "OFF"

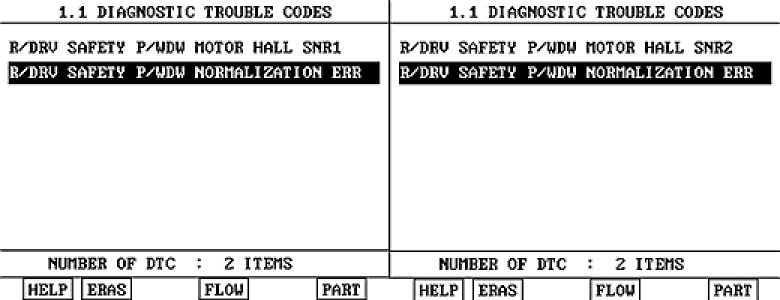

2. Using the scantool, monitor the DTC status.
3. Is the DTC R/DRV SAFETY P/WDW NORMALIZATION ERR displayed with DTC R/DRV SAFETY P/WDW MOTOR HALL SNR 1/2 ERR?




YES
1) Go to "Troubleshooting for DTC DRV SAFETY P/WDW MOTOR HALL SNR 1/2 ERR"
NO
1) Go to "Inspection/Repair" procedure.
