W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems and mechanical or chemical damage.
2. Check the following conditions:
(1) Check for damaged harness and terminals: contact resistance, oxidation, bent or broken terminals.
(2) Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks and poor terminal to wire connection

CAUTION:
Using a suitable male pin to ensure that contact in sockets is good. The pin should remain in position when pulled gently.





3. Has a problem been found?
YES
1) Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
1) Go to "Power Circuit Inspection" procedure

Power Supply Circuit Inspection

1. Ignition "OFF"
2. Disconnect BCM connector and passenger compartment junction block.

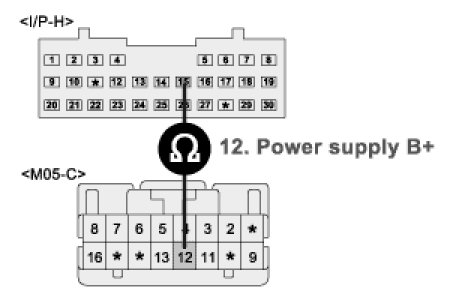

3. Measure resistance between terminal "15" of the passenger compartment junction block harness connector and "12" of the BCM harness connector.
A. Specification : Approx. 1 Ohm below.




4. Is measured resistance within specifications?
YES
1) Go to "BCM Inspection" procedure.
NO
1) Check for an open in power supply harness. Repair as necessary and then go to "Verification of Vehicle Repair"
