Monitor Scantool Data

Monitor Scantool Data

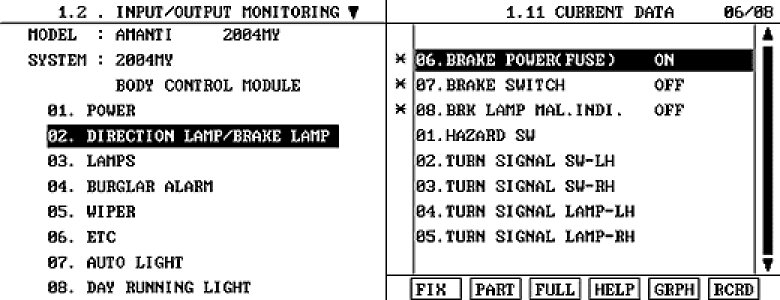

1. Ignition "ON" and engine "OFF"
2. Connect scantool and select INPUT/OUTPUT MONITORING.
3. Monitor "BRAKE POWER (FUSE)" parameter on the scantool.
A. Specification : ON




4. Is "BRAKE POWER (FUSE)" displayed according to specification?
YES
1) Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.
Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
1) Go to "Component Inspection" procedure.
