General Information

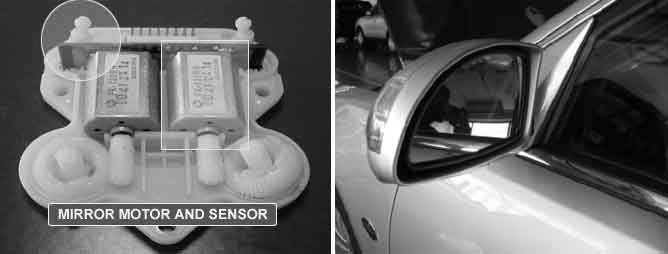

Component Location





General Description

At the "IG ON" state, if the mirror select switch in the power window main switch module is the LH state and the mirror direction switches (up, down, left, and right) are operated, then the mirror motor shall be driven to control the mirror in the desired direction.






DTC Description

The power window main switch module sets DTC LH OUTSIDE MIRROR VER. MOTOR/SNSR ERR if the switch module detects no signal from LH outside mirror vertical sensor

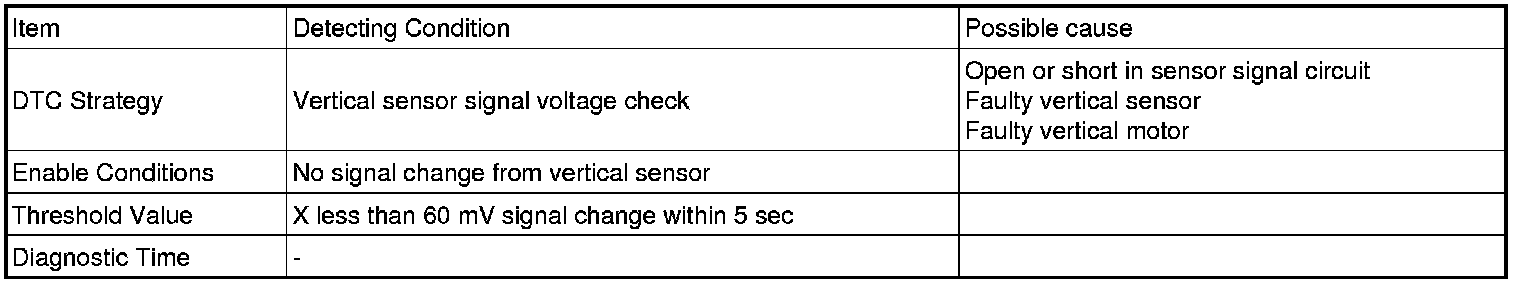

DTC Detecting Condition





Schematic Diagram
