General Information

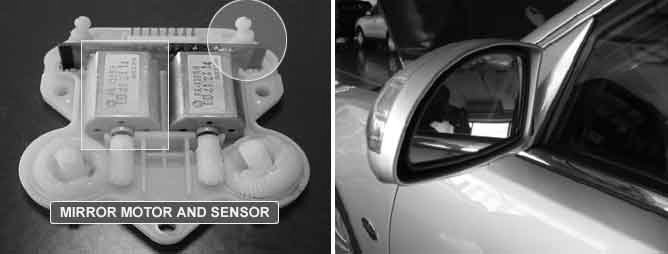

Component Location

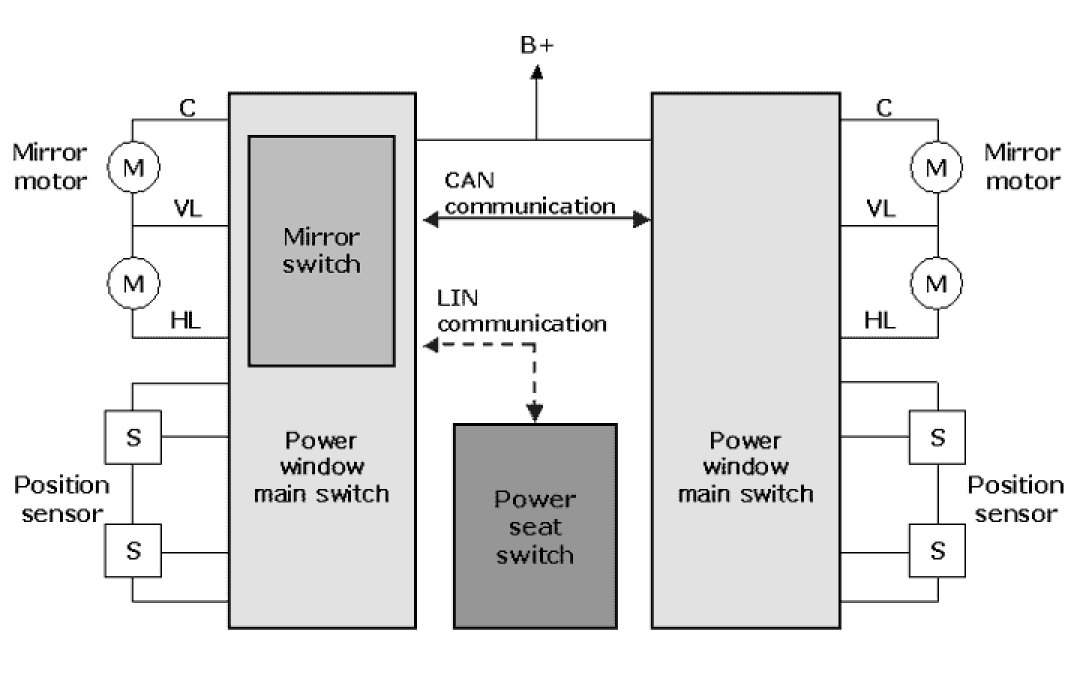

General Description

At the "IG ON" state, if the mirror select switch in the power window main switch module is the LH state and the mirror direction switches (up, down, left, and right) are operated, then the mirror motor shall be driven to control the mirror in the desired direction.






DTC Description

The power window main switch module sets DTC LH OUTSIDE MIRROR HOR. MOTOR/SNSR ERR if the switch module detects no signal from LH outside mirror horizontal sensor.

DTC Detecting Condition





Schematic Diagram
