General Information

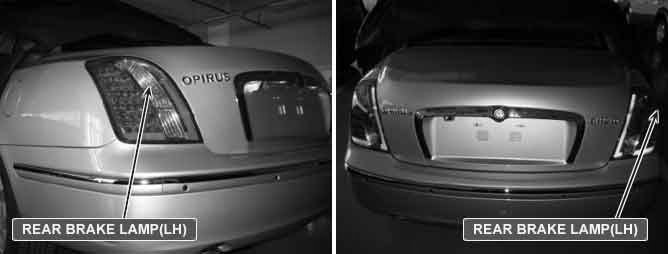

Component Location





General Description

The purpose of this function is to indicate brake lamp(s) failure.
In IGN1 "ON" state, When brake pedal is depressed and a brake lamp failure is detected (Stop lamp failed = ON), Indicator lamp output is turned ON.
The brake lamp failure is confirmed after 200 ms. The present failure is cleared by fault manager, when the failure condition no longer exists.






DTC Description

When the brake pedal is depressed, The BCM checks the operation current of brake lamp and set this code if the current is out of permissible range.

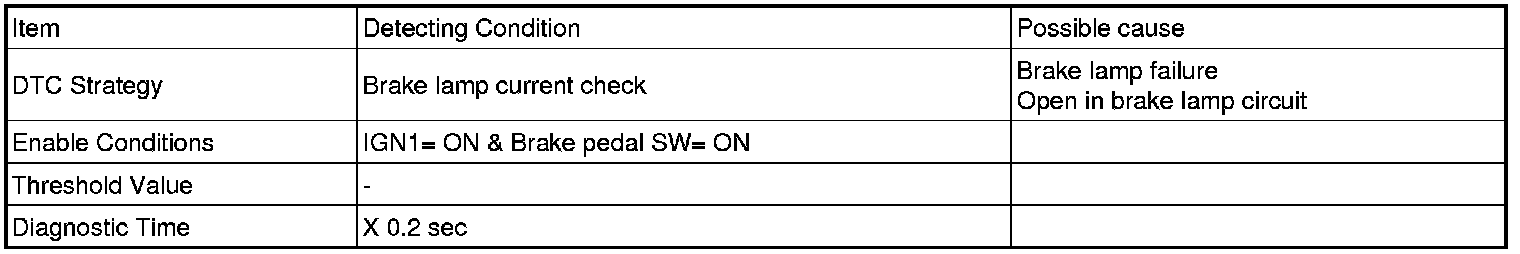

DTC Detecting Condition

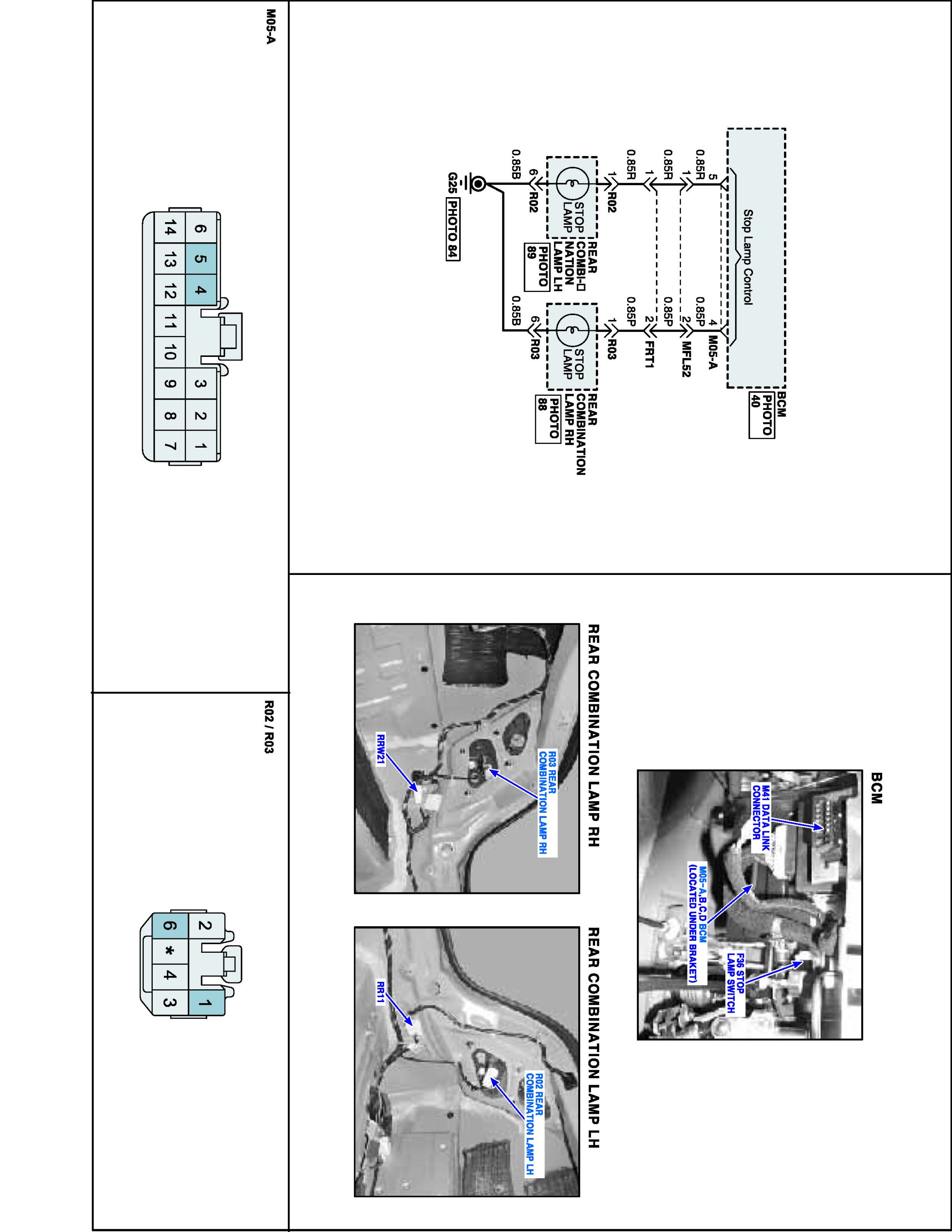

Schematic Diagram
