General Information

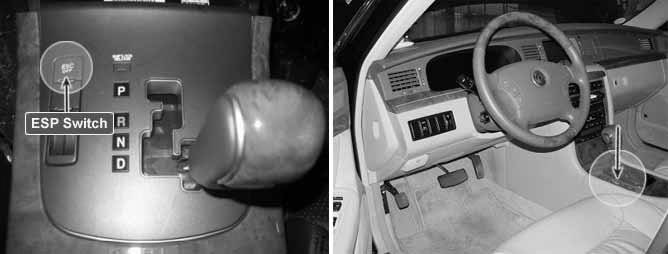

Component Location





General Description

The ESC switch is used to temporarily deactivate ESC control.

DTC Description

Trouble code is set when the condition that the level of TCS/ESC switch is low is continued for 60 sec. When the TCS/ESC switch failure is set, Warning lamps won't illuminate and HECU inhibits the TCS/ESC control and allow the ABS/EBD control.

DTC Detecting Condition





Schematic Diagram
