Component Inspection

Component Inspection

1. Turn ON 'TPMS exciter'.
2. Select "TIRE SNSR CONFIG (EXCITER)" mode.

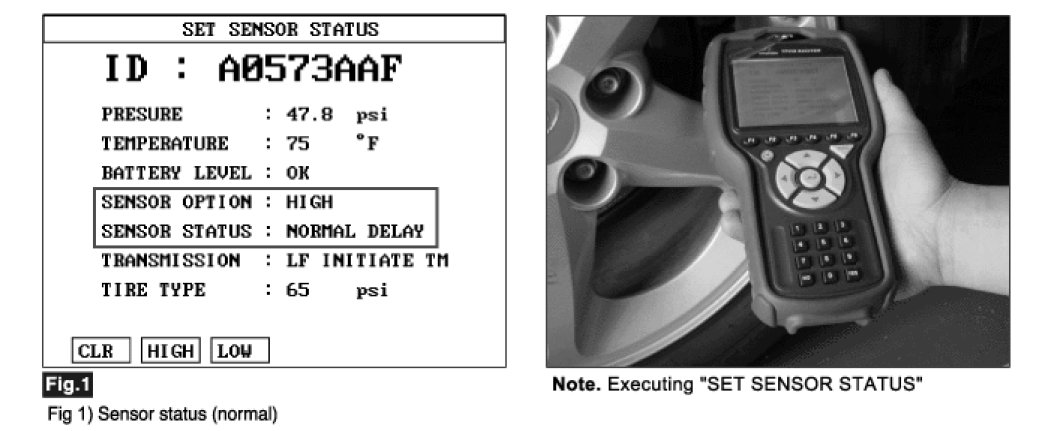

3. Execute "SET SENSOR STATUS" of rear right sensor.




4. Is data unable to be retrieved for rear right sensor?
YES
1) Replace affected TPMS sensor and register sensor ID with 'TPMS exciter'.
2) Go to "Verification of Vehicle Repair" procedure.
NO
1) Substitute with a known-good TPMS receiver module and check for proper operation.
2) If the problem is corrected, replace TPMS receiver module and then go to "Verification of Vehicle Repair" procedure.
