Monitor Scantool data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC)
2. Engine "ON".
3. Maintain the vehicle standing still.
4. Monitor the "Lateral Acceleration Sensor, Yaw Rate Sensor" parameter on the Scantool.

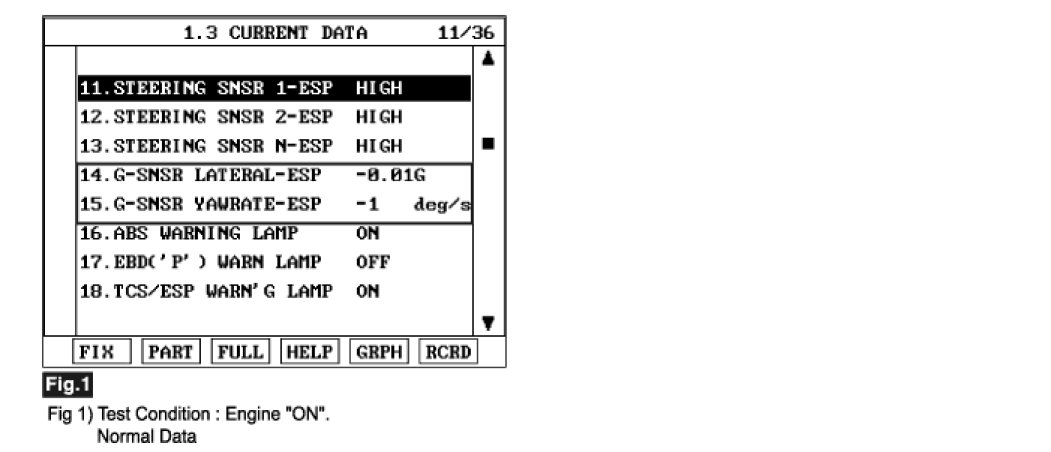

A. Specification : Approx. Lateral Acceleration Sensor : -0.01G
Approx. Yaw Rate Sensor : -1 deg/s





CAUTION:
The parameters will be fixed when there is open in yaw & lateral G sensor circuit.

5. Is parameter displayed within specifications?
YES
1) Fault is intermittent caused by faulty sensor cluster and/or faulty HECU or was repaired and HECU memory was not cleared. Go to "Verification of Vehicle Repair" procedure.
NO
1) Go to "W/Harness Inspection" procedure.
