General Information

Component Location





General Description

Temperature control actuators are installed at driver side, passenger side, and rear vent. Control switches and rear vent duct switch will operate actuators, that will regulate temperature control position and discharge air temperature.

DTC Description

The ECM sets DTC B2418 if there is short to power harness in signal haness of the RR vent Temp Potentiometer

DTC Detecting Condition

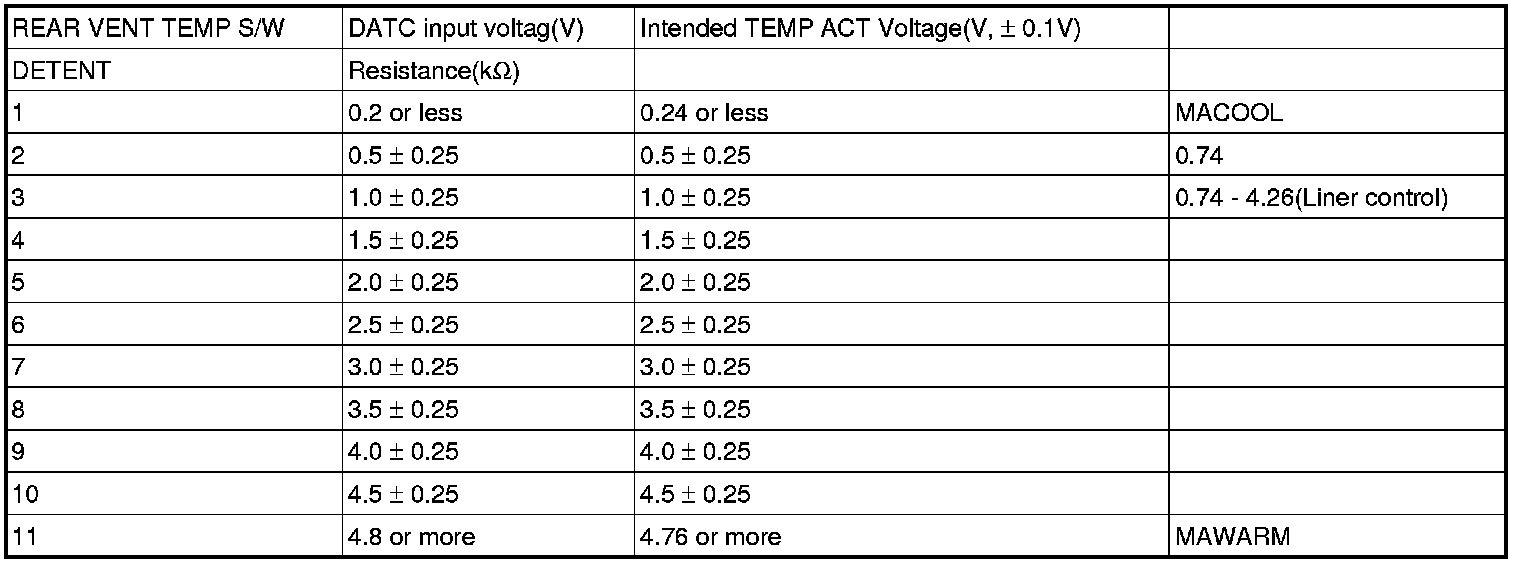

Specification





Schematic Diagram
