General Information

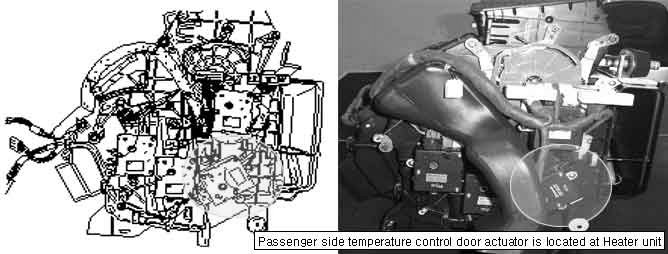

Component Location





General Description

Temperature control actuators are installed at driver side, passenger side, and rear vent. Control switches and rear vent duct switch will operate actuators, that will regulate temperature control position and discharge air temperature.

DTC Description

The ECM sets DTC B2417 if there is open circuit or poor connection of connected part in the RR vent Temp Potentiometer

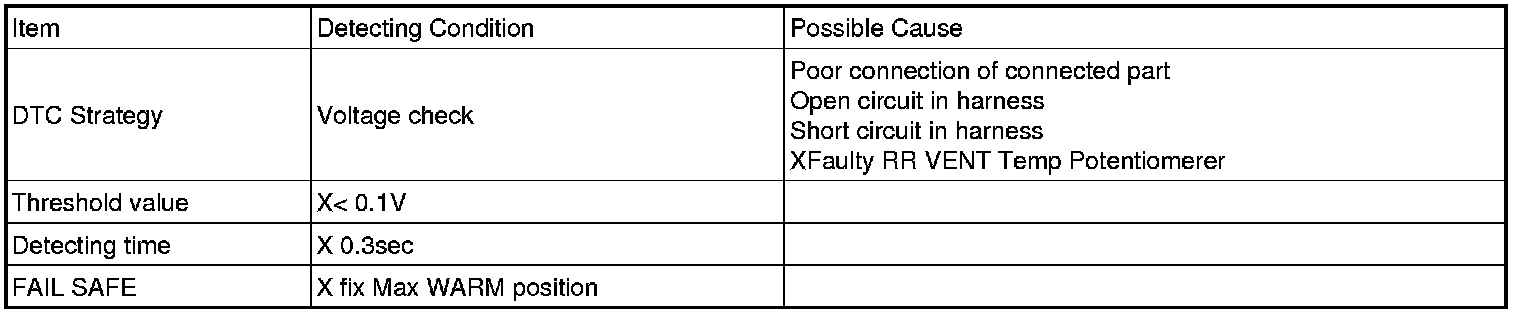

DTC Detecting Condition





Specification





Schematic Diagram
