General Information

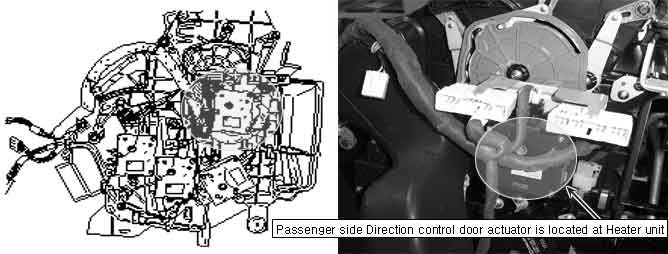

Component Location





General Description

The mode control actuator mount on heater unit adjusts position of mode door by operating Direction Motor in accordance with signal of A/C control unit. Pressing mode select switch makes the mode control actuator shift in vent-> B/L -> floor -> mix order.

DTC Description

The ECM sets DTC B2416 if the PS direction motor doesn't move to intended position within 40 sec

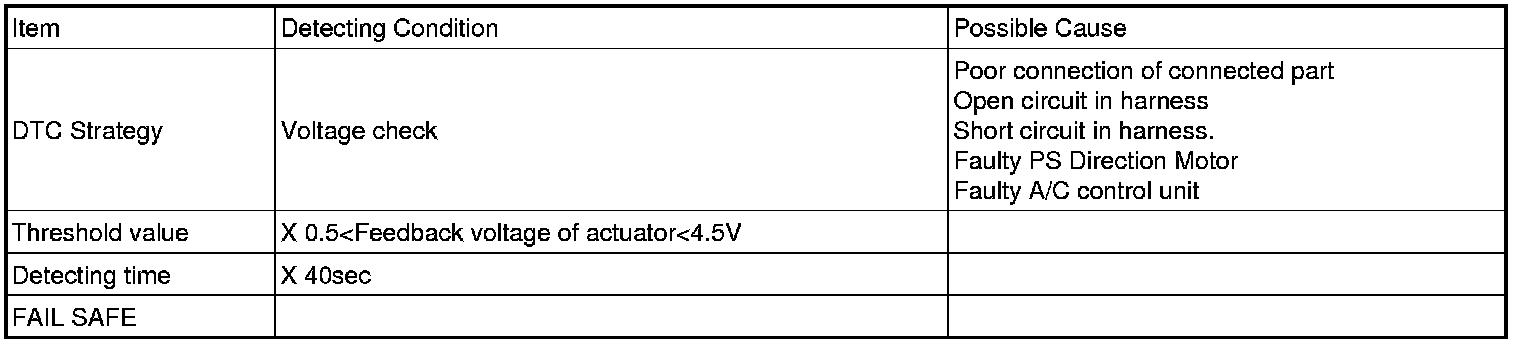

DTC Detecting Condition

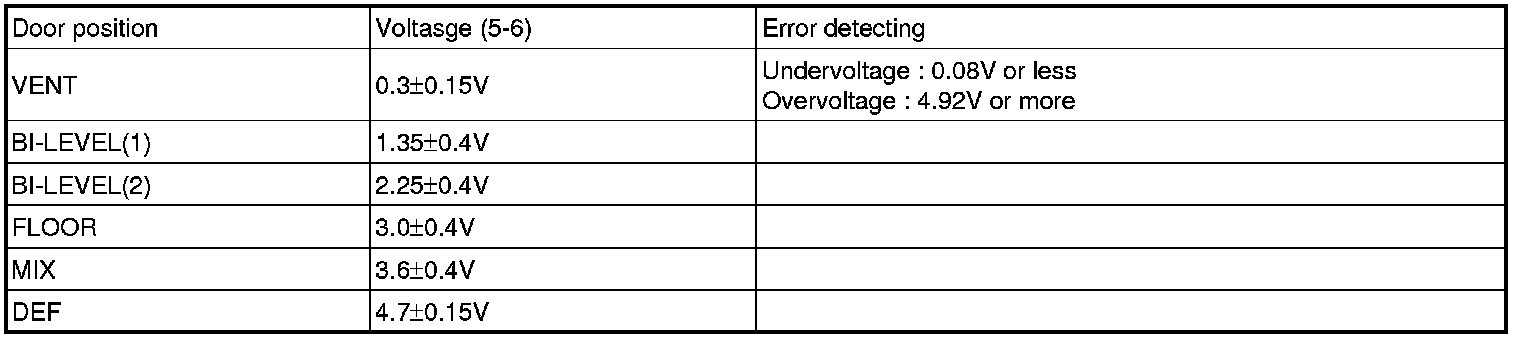

Specification





Schematic Diagram
