General Information

Component Location





General Description

Rear Side Airbag (hereinafter referred to RSAB) is located in driver and passenger side rear seat. It protects passenger's head and shoulder in broad collision. RSAB is consist of air bag and inflator. Air bag reduces impact of collision by filled up gas. Inflator keeps gas and uses it to deploy air bag on collision.

CAUTION:
Never measure resistance of RSAB directly, Current of measuring device may cause unexpected air bag deploy.

DTC Description

The SRSCM sets DTC B1436 if there is a short to power in PRSAB harness.
* In this case, SRSCM checks if there's any fault in circuit by sending current for a while.

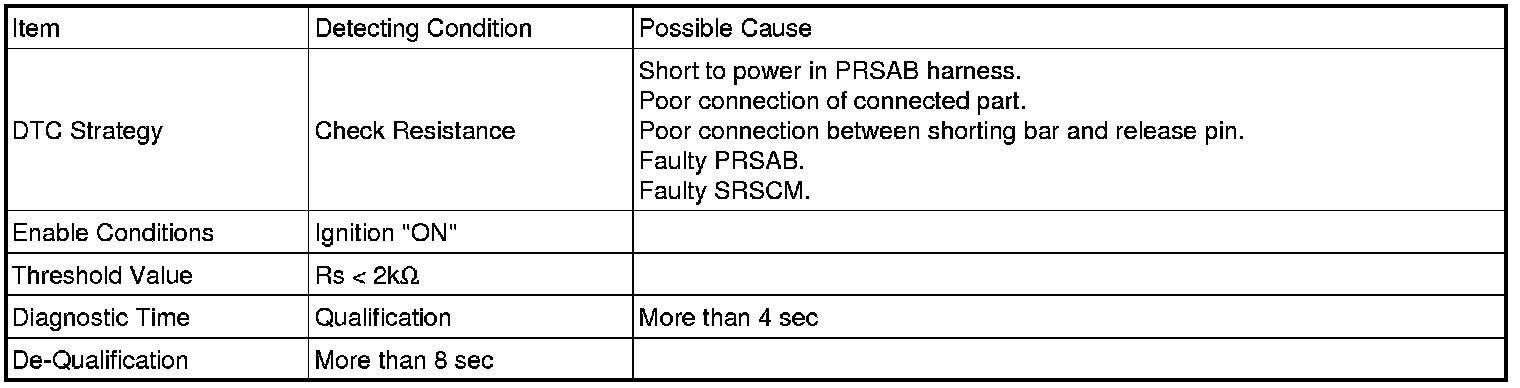

DTC Detecting Condition





Specification





Schematic Diagram
