General Information

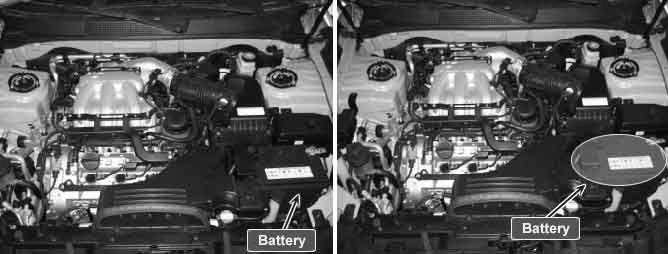

Component Location





General Description

The SRSCM can communicate any extra devices such as FIS, SIS if battery voltage is greater than 10.6V.
If battery voltage drops less than 10.6V, SRSCM continuously monitors external devices and if there is an any fault occurred from external devices such as FIS and SIS then SRSCM will set above DTC.

DTC Description

If the malfunction of FIS or SIS is detected when the battery voltage is less 10.6V. SRSCM will set DTC B1103.

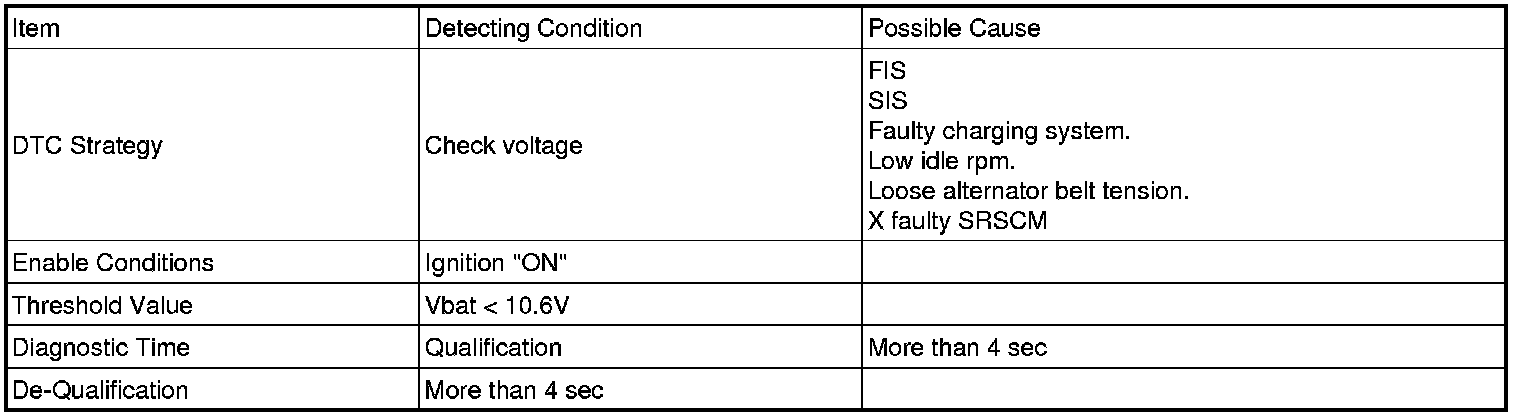

DTC Detecting Condition





Specification





Schematic Diagram
