Front Door Window Regulator: Service and Repair

Notice: There is no stand alone Front Door Module article authored by the manufacturer. This information was extracted from the Front Door Removal article.

Front Door Module Removal and Installation

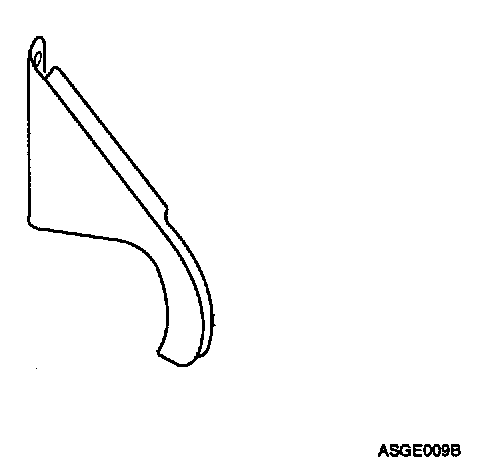

1. Remove door quadrant inner cover.

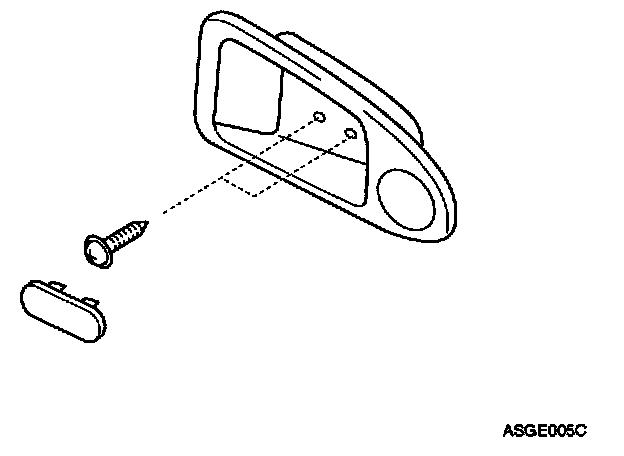

2. Remove door inner handle cover.

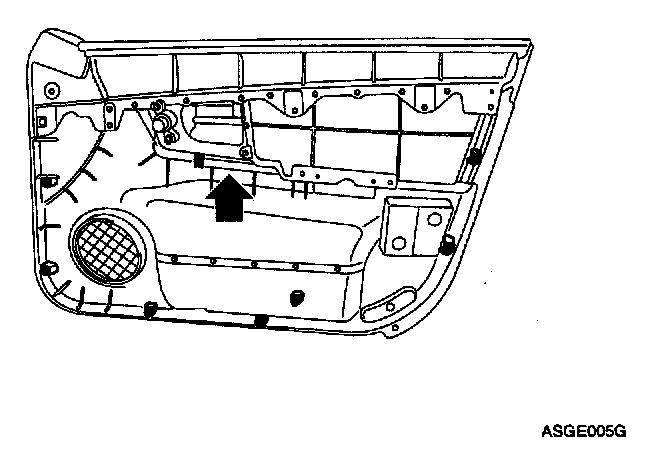

3. Remove door trim.

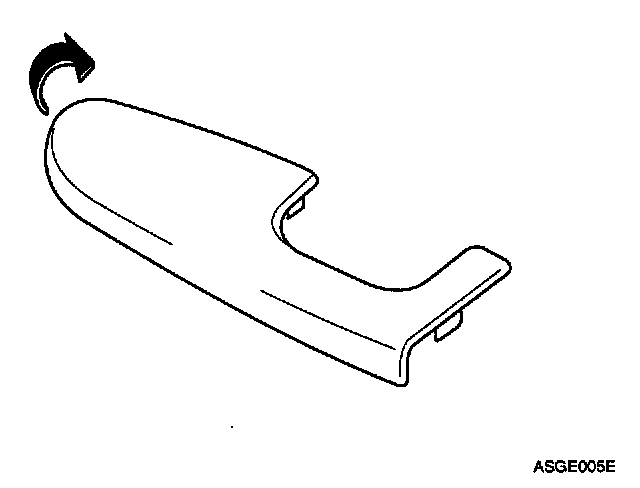

1. Remove arm rest.

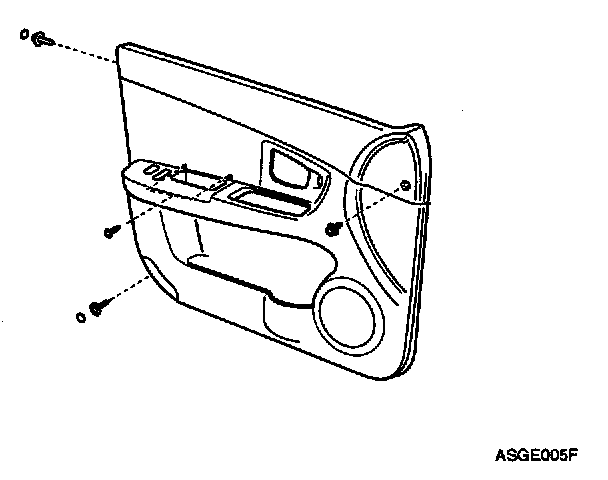

2. Remove door trim fastener and screws(4).




3. Remove door trim.

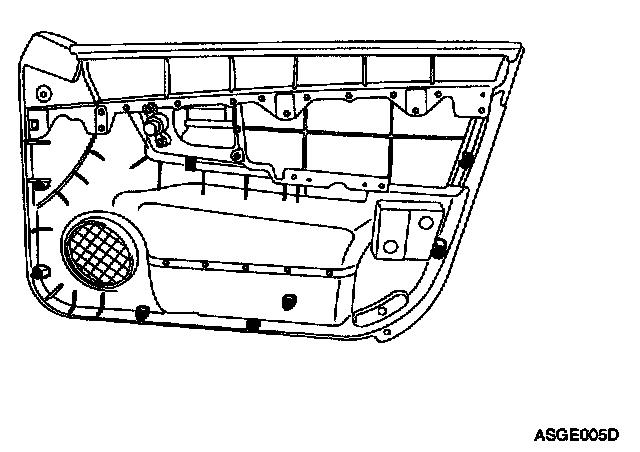

4. Disconnect door trim connector.




4. Remove door screen.

NOTE: Peel door screen off care fully so that it can be reused.

5. Remove window glass.
1. Connect power window switch connector.
2. Connect negative battery terminal.

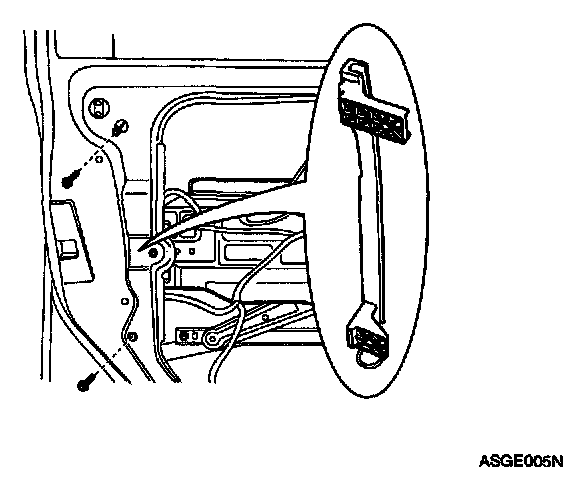

3. Turn ignition switch "ON" and set window glass grip bolts on access hole.
4. Turn ignition switch "OFF".

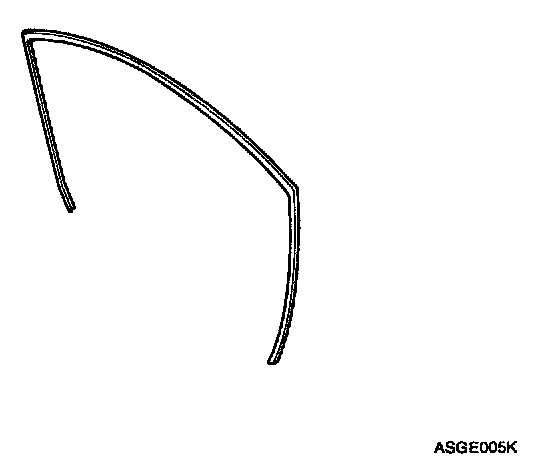

5. Remove glass run channel.

NOTE: When install the glass run channel, use soap and water for lubrication.

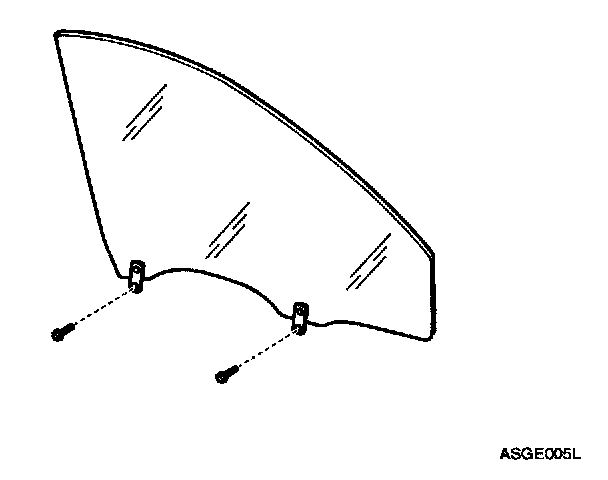

6. Remove window glass grip bolts(2).

Tightening torque : 8 - 12 Nm (0.8 - 1.2 kg.m, 6 - 9 lb.ft)

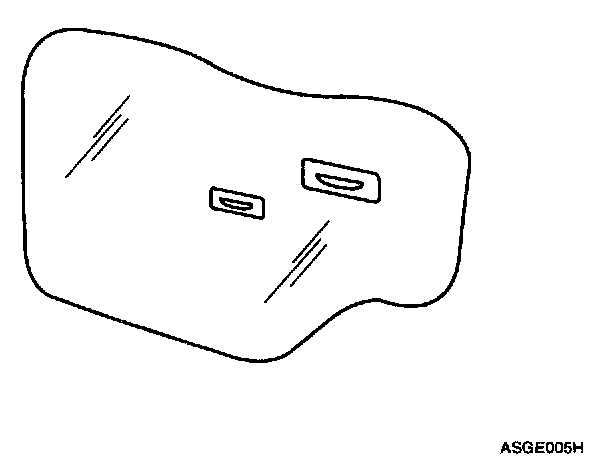

7. Remove door glass.

NOTE: Remove the glass carefully to avoid brakeage.

8. Disconnect negative battery terminal.

9. Remove power window switch connector.

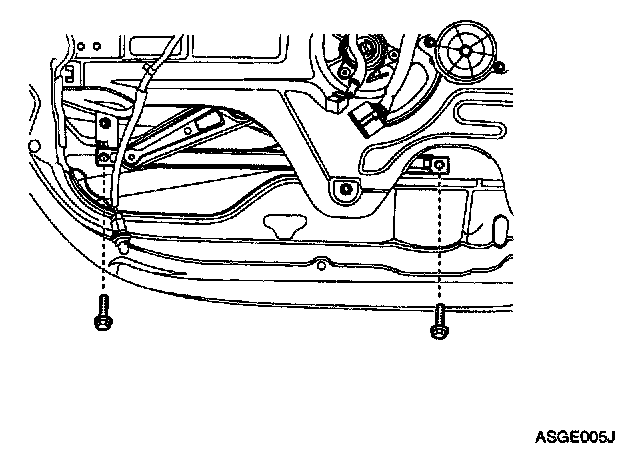

6. Remove door channel.




1. Remove door channel mounting bolts(2).

Tightening torque : 8 - 12 Nm (0.8 - 1.2 kg.m, 6 - 9 lb.ft)

2. Remove door channel.

7. Remove door module assembly.

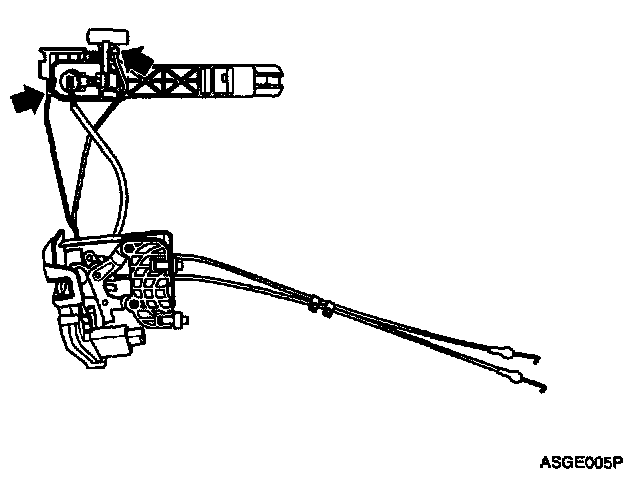

1. Disconnect door outer handle rods(2).

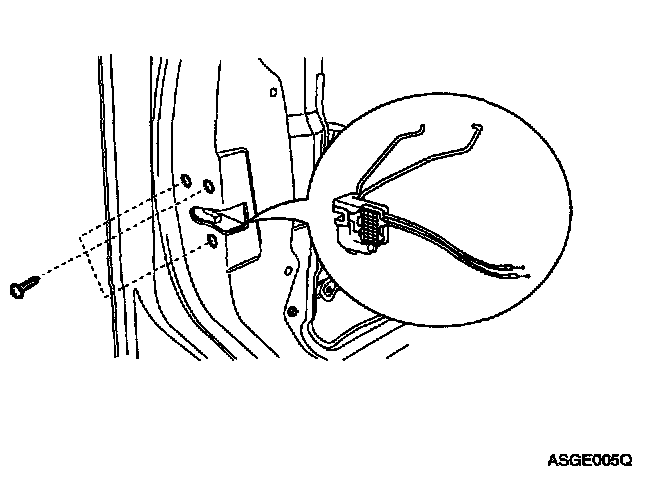

2. Remove door latch screws(3).

Tightening torque : 7 - 11 Nm (0.7 - 1.1 kg.m, 5 - 8 lb.ft)

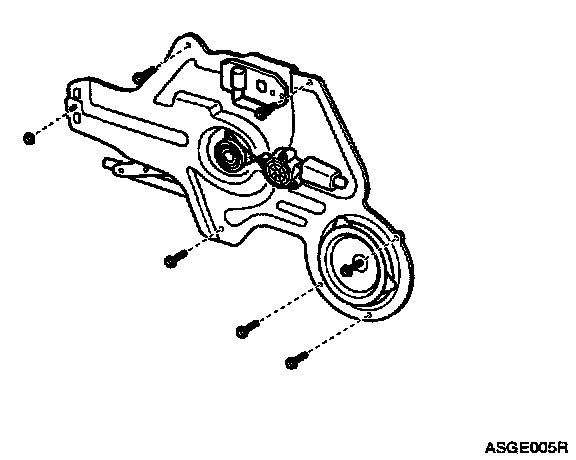

3. Remove door module bolts(5) and nuts(2).

Tightening torque : 8 - 12 Nm (0.8 - 1.2kg.m, 6 - 9 lb.ft)

4. Disconnect door module connector.
5. Remove wire harness from door module assembly.
6. Remove door module assembly.


8. Installation is the reverse of removal.
