Heated Glass Element Relay: Testing and Inspection

INSPECTION

1. Remove the negative (-) battery terminal.

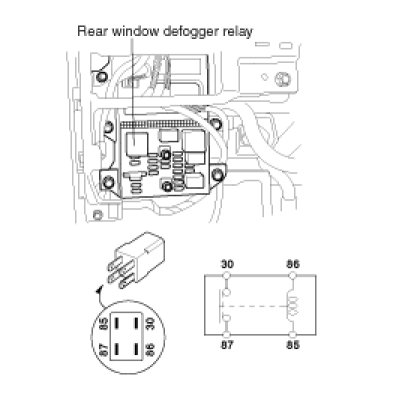

2. Remove the rear window defogger relay after removing to the driver's crash pad lower panel from passenger compartment.
3. There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.
4. There should be no continuity between the No.30 and No.87 terminals when power is disconnected.
