Disassembly

DISASSEMBLY

1. Clamp the differential case in a vise.

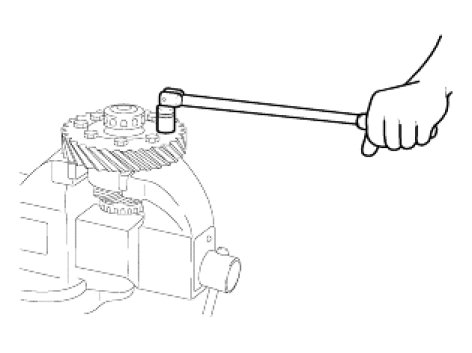

2. Remove the differential drive gear retaining bolts and remove the differential drive gear from the case.




3. Remove the taper roller bearing using the special tool.

CAUTION:
Do not reuse the bearing removed from the shaft.

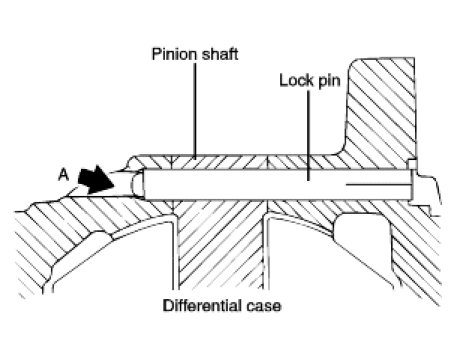

4. Drive out the lock pin from the hole A using a punch.
5. Drive out the pinion shaft.
6. Remove the pinion gears, washers, side gears and spacers.
