Seals and Gaskets: Service and Repair

SERVICE ADJUSTMENT PROCEDURES

DRIVE SHAFT OIL SEAL REPLACE
1. Disconnect the drive shaft from the transaxle (see "DS" group).

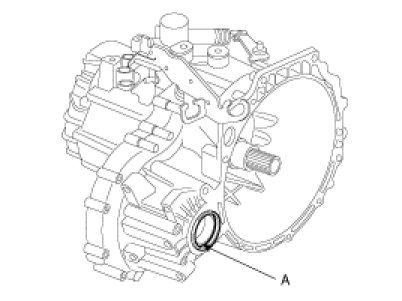

2. Using a flat-tip screwdriver, remove the oil seal(A).




3. Using the special tool (09431-21200), tap the drive shaft oil seal into the transaxle.




4. Apply a coating of gear oil to the oil seal.

Transaxle gear oil :
Hypoid gear oil, SAE 75W/90 (API GL-4)
