Repair Procedures

REMOVAL

1. Disconnect the clutch tube.
2. Remove the clutch release cylinder mounting bolt.

INSTALLATION

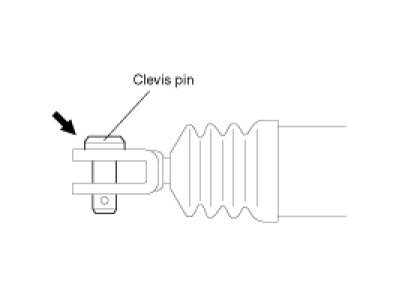

1. Coat the clevis pin with specified grease. Align the hose at the end of the release cylinder push rod with that of the clutch release fork shaft, and insert the clevis pin into the holes.

Specified grease: CASMOLY L9508





2. Install the clutch release cylinder and the clutch tube.
