Inspection

INSPECTION
1. Check the release cylinder bore for rust and damage.

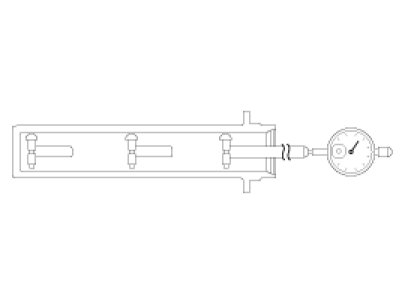

2. Measure the release cylinder bore at three locations (bottom, middle, and top) with a cylinder gauge and replace the release cylinder assembly if the bore-to-piston clearance exceeds the limit.

Limit clearance to piston: 0.15 mm (0.006 in.)
