Disassembly

DISASSEMBLY

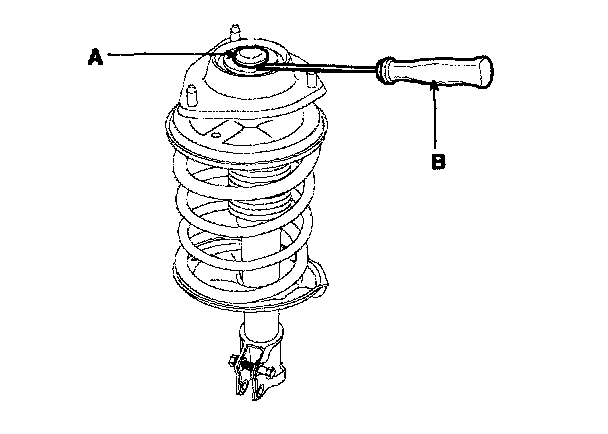

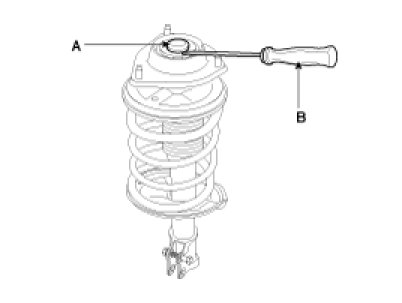

1. Remove the dust cover(A) with a flat-tipped (-) screwdriver(B).

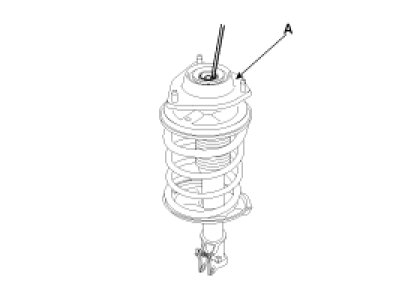

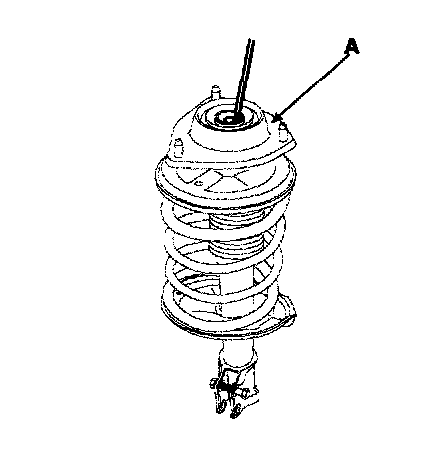

2. Open the dust cover and wipe off grease in the insulator.

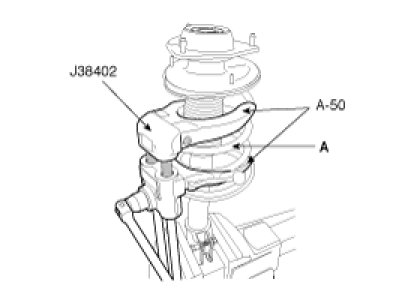

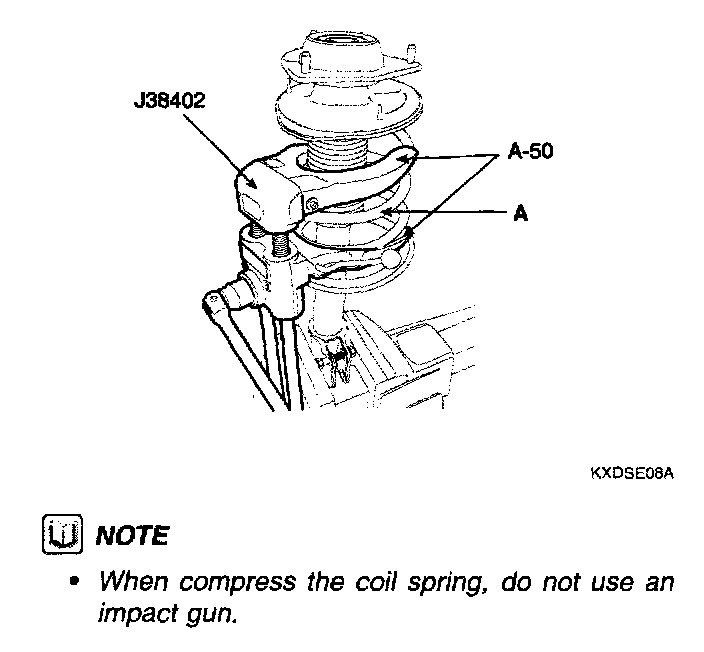

3. Using the Special Tool (J38402, A-50), compress the coil spring(A) until there is only a little tension of the spring on the strut.





NOTE:
- When compress the coil spring, do not use an impact gun.

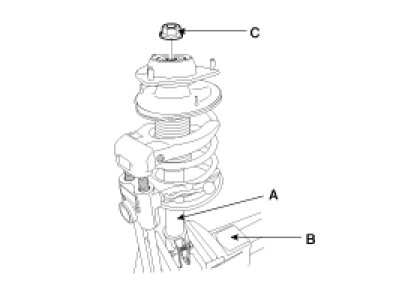

4. Under the condition of fixed strut(A) on the vise(B), remove the front strut self-locking nut(C).




5. Remove the insulator, spring seat, coil spring and dust cover from the strut assembly
