Repair Procedures

REMOVAL

1. Remove the front wheel and tire.

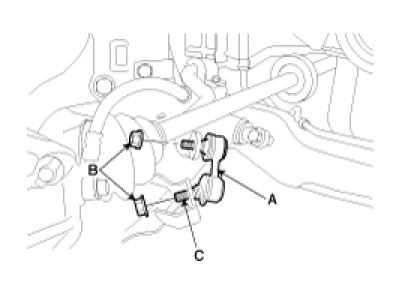

2. Remove the stabilizer bar link assembly (A).




A. Remove the bolts(B) and stabilizer bar link(A).

NOTE:

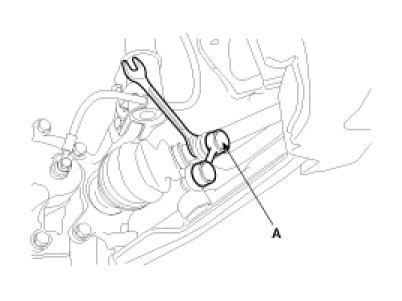

If the stabilizer bar link ball joint(C) and nuts(B) turn altogether, use the pentagonal wrench to hold the stud.




B. Remove the stabilizer bar link on the opposite side in the same way.

CAUTION:
Be careful not to damage the ball joint boot.

3. Remove the stabilizer bracket(A) and bushing(B)
A. After loosen the bolts(C-in case of LH, separate pad by loosening the fixing bolts of the stabilizer bar bracket), then remove the bracket(A) and bushing(B)




B. Remove the stabilizer bar link on the opposite side in the same way.
C. Remove the stabilizer out of the vehicle's right side.

INSTALLATION

1. Install the bushing on the stabilizer bar.

NOTE:

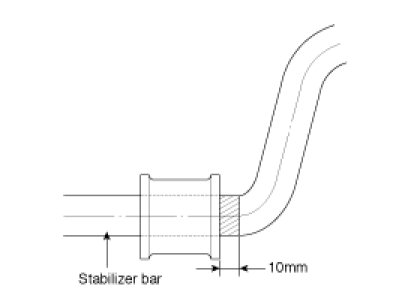

The distance between the bushing, and the part to which white paint is applied, must continue 10mm outside the vehicle.




2. Install the bracket on the bushing
3. Align and install the bushing with the white paint on the stabilizer bar. After tightening the bolts of the bushing bracket temporarily, install the bushing bracket on the opposite side.
