Disassembly and Reassembly

DISASSEMBLY AND REASSEMBLY

KEY LOCK ASSEMBLY
1. If it is necessary to remove the key lock assembly(A), use a punch to make a groove on the head of the special bolt(B), and then use a screw driver to remove the key lock assembly mounting bracket(C).




2. Disassemble the key lock assembly(A) from the steering column and shaft assembly(B).




3. Reassembly is the reverse of disassembly.

UNIVERSAL JOINT ASSEMBLY

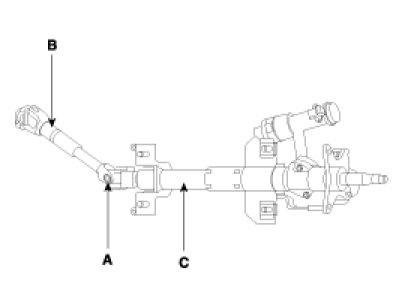

1. Remove the bolt(A) connecting the universal joint assembly(B) and the steering column and shaft assembly(C).

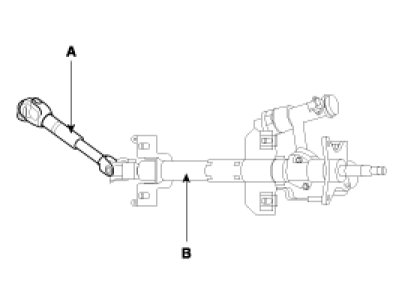

2. Remove the universal joint assembly(A) from the steering column and shaft assembly(B).




3. Reassembly is the reverse of disassembly.
