Home >> Kia >> 2008 >> Spectra L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> System Specifications >> Specifications (M5BF2)

Specifications (M5BF2)





SPECIFICATION

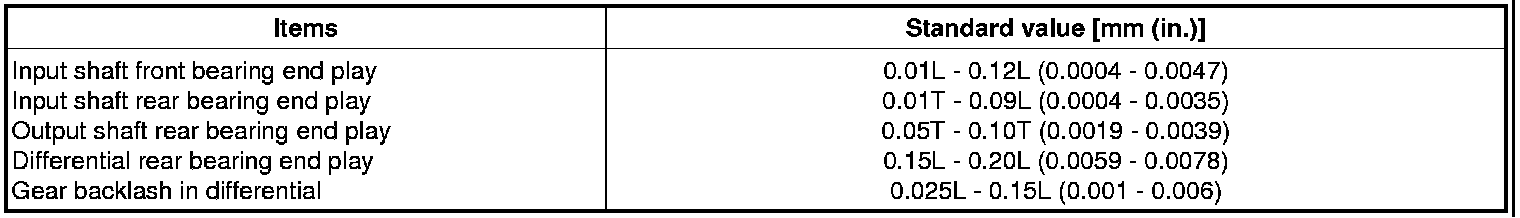

SERVICE STANDARD





T : Indicates tightening of -(minus) direction of end play
L : Indicates loosening of +(plus) direction of end play

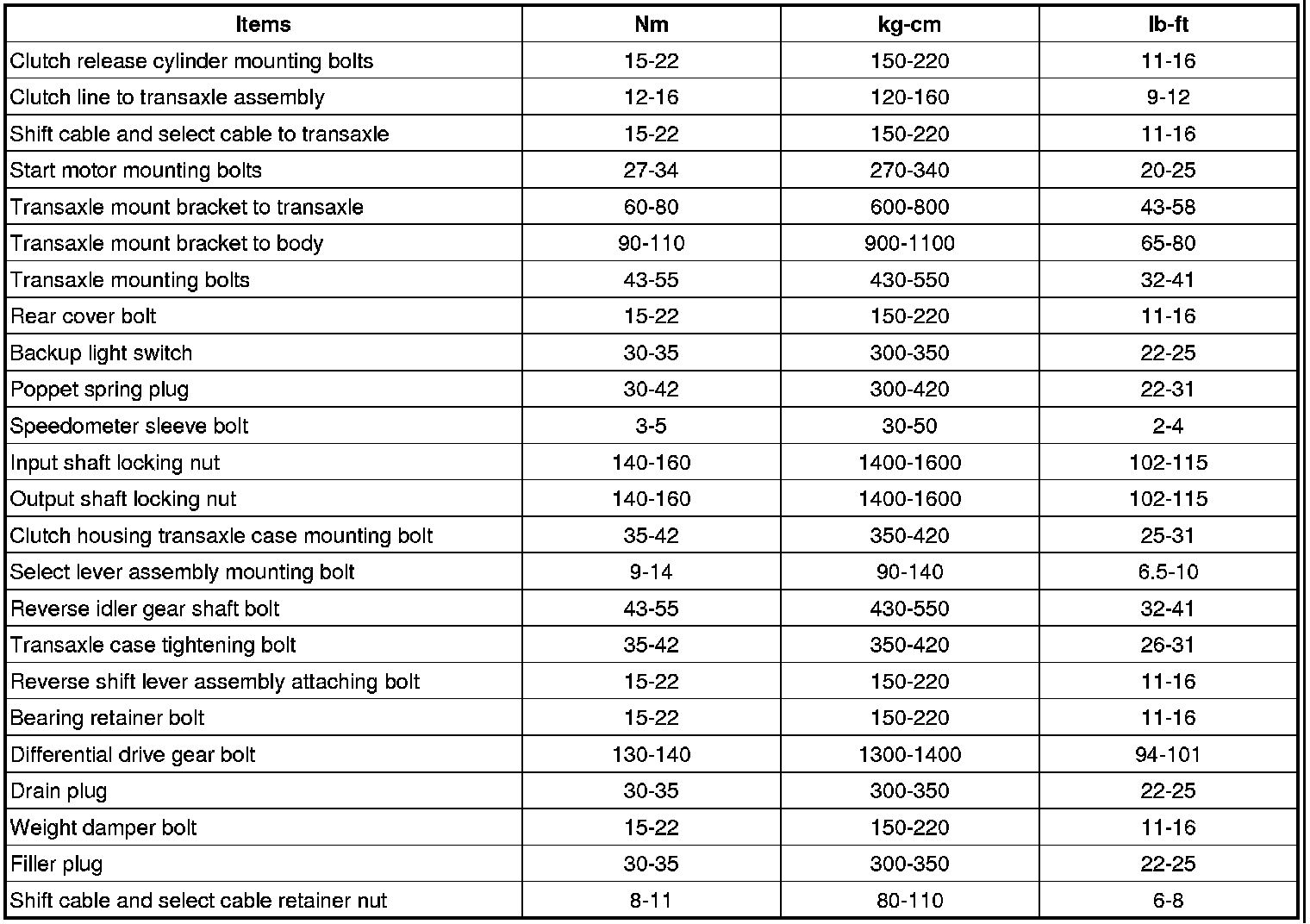

TIGHTENING TORQUE
