FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Kia
>>
2008
>>
Spectra L4-2.0L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Specifications (A4CF2)
Specifications (A4CF2)

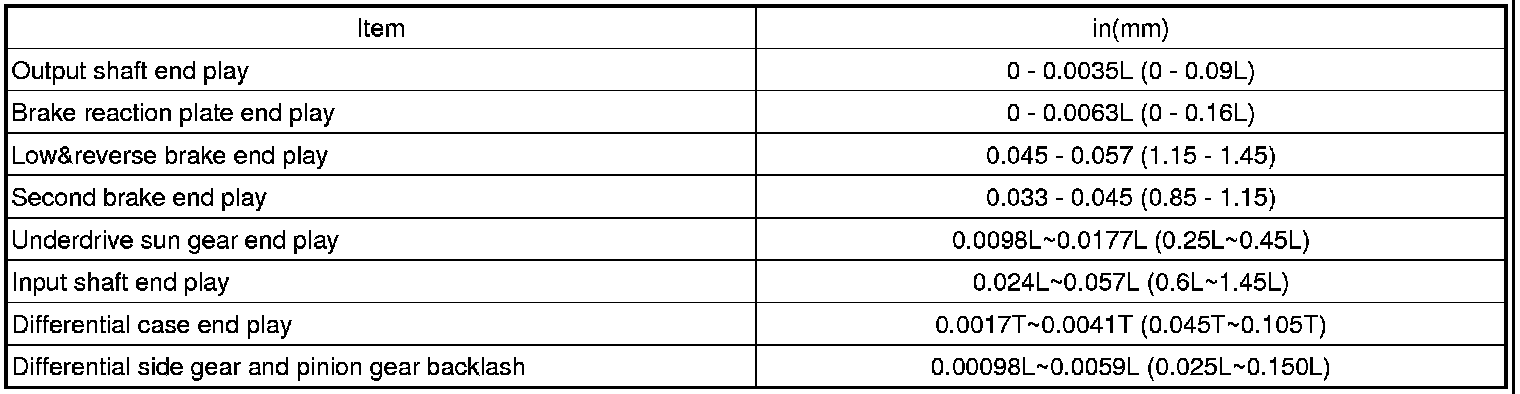

Service standard
T: Indicate tightening of -(minus) direction of end play
L: Indicate loosening of +(plus) direction of end play

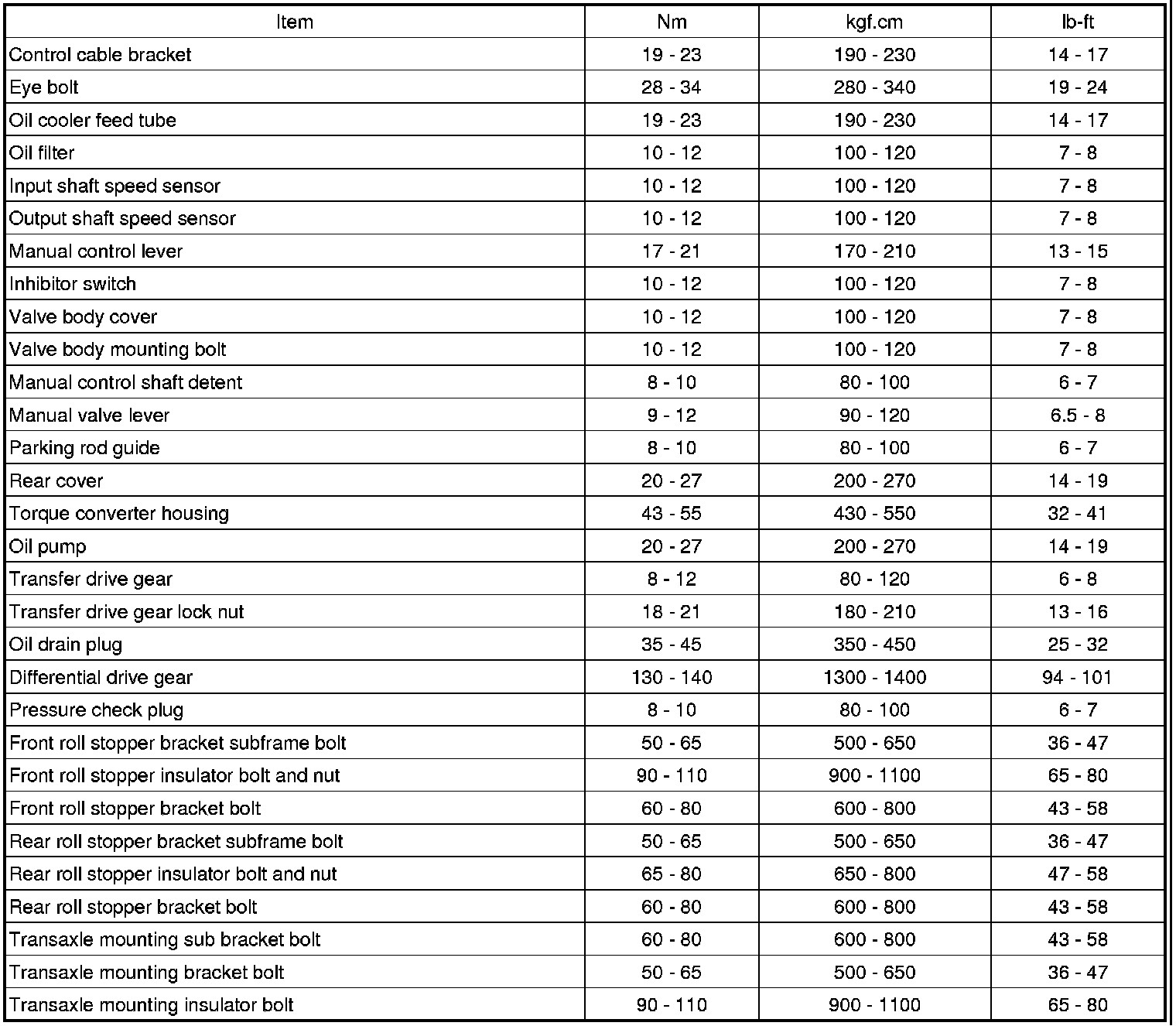

Tightening torque
