Fuel System - Specifications

SPECIFICATIONS

OUTPUT ACTUATORS

Purge Control Solenoid Valve (PCSV)
> Type: Duty Control type

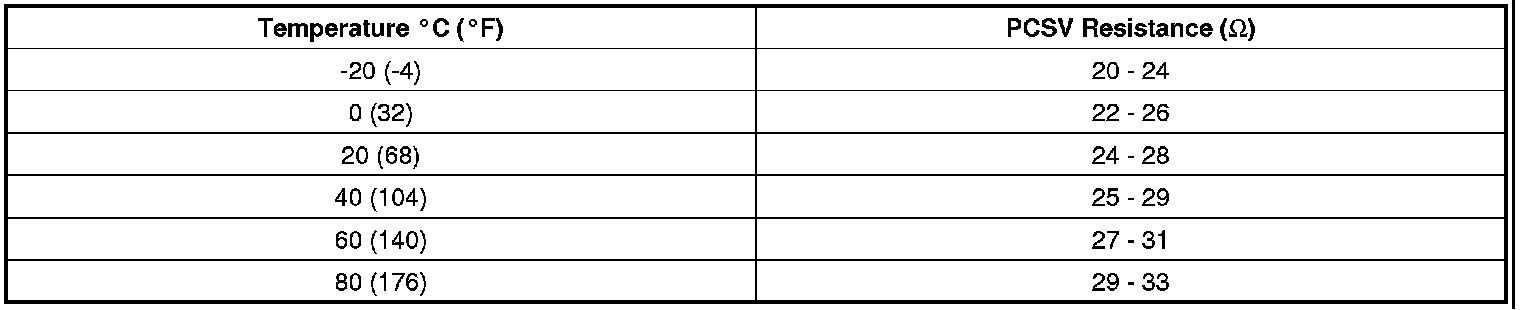

> Specification
