Windshield Wiper/Washer Switch











INSPECTION

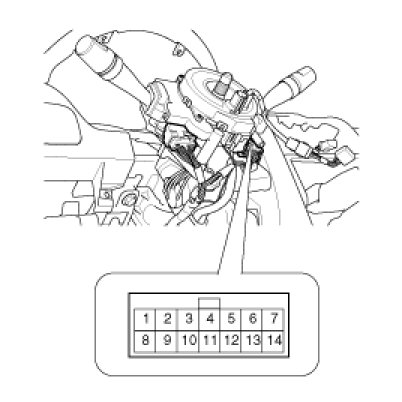

Check for continuity between the terminals while operating the wiper and washer switch.

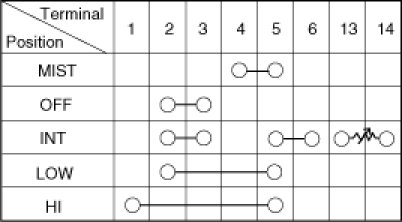

WIPER SWITCH

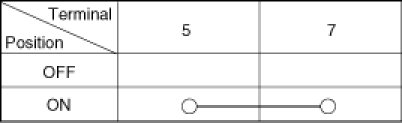

WASHER SWITCH
