Indicators and Gauges








INSPECTION

DOOR SWITCH
Remove the door switch and check for continuity between the terminals.

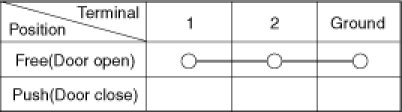

[FRONT DOOR SWITCH]

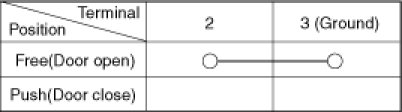

[REAR DOOR SWITCH]
