Restraint (Airbag Control) - Supplemental Restraint System Control Module (SRSCM)

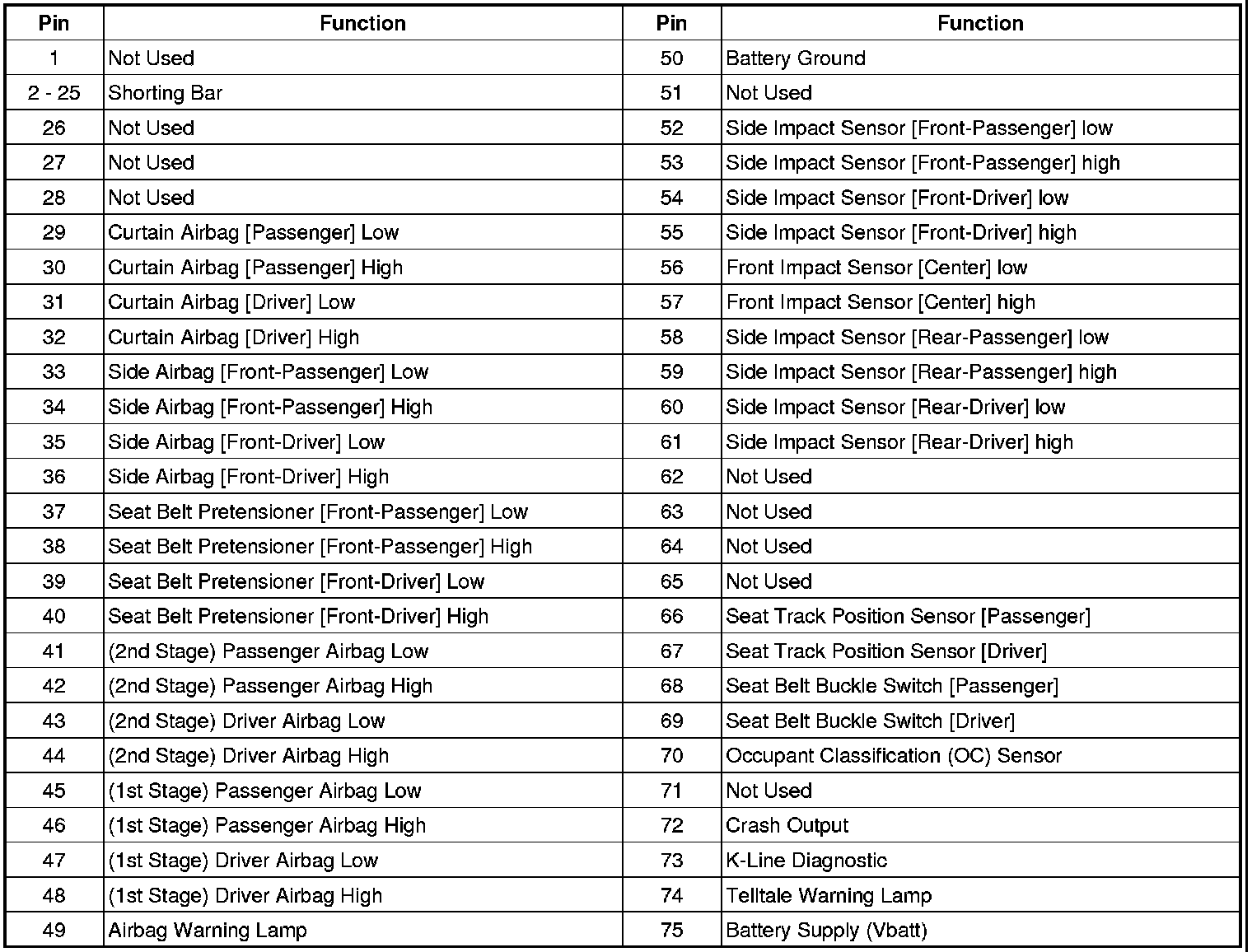

SRSCM CONNECTOR TERMINAL
