Pinout Values and Diagnostic Parameters












INPUT/OUTPUT BLOCK DIAGRAM

1. INPUT/OUTPUT DIAGRAM

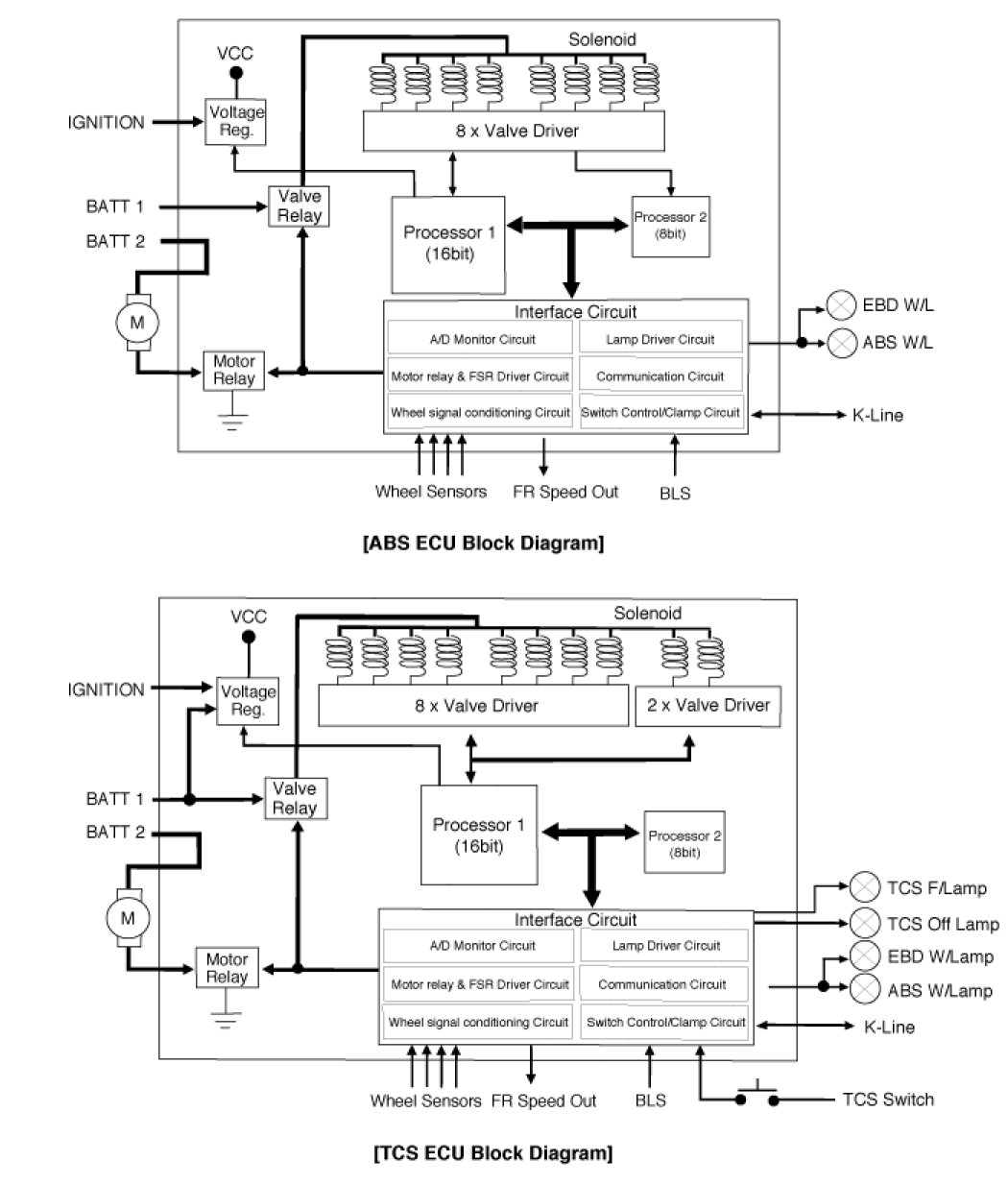

2. ABS ECU BLOCK DIAGRAM
