Fuel Pump: Testing and Inspection

FUEL PRESSURE TEST

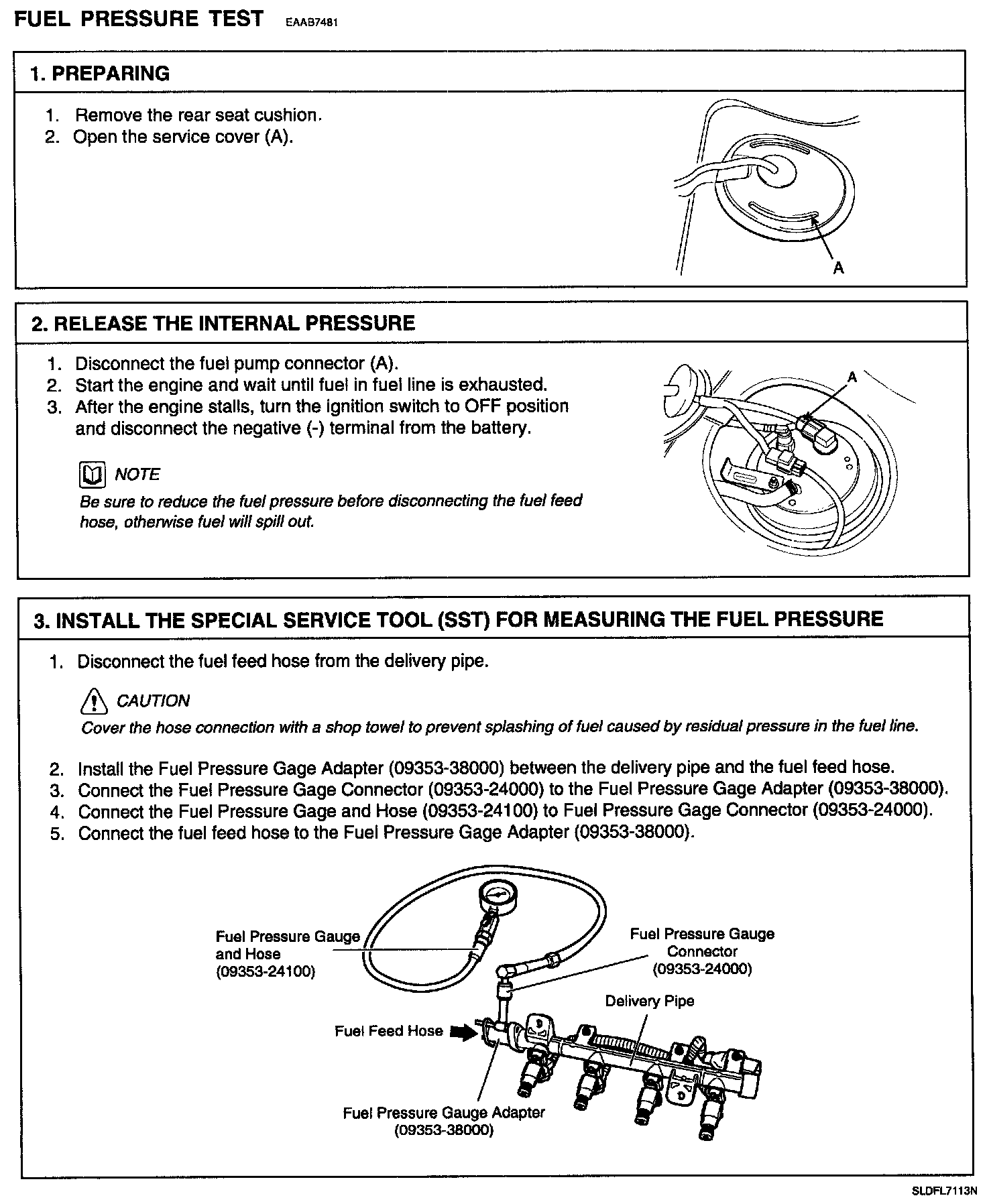

Fuel Pressure Test Part 1 - 3:

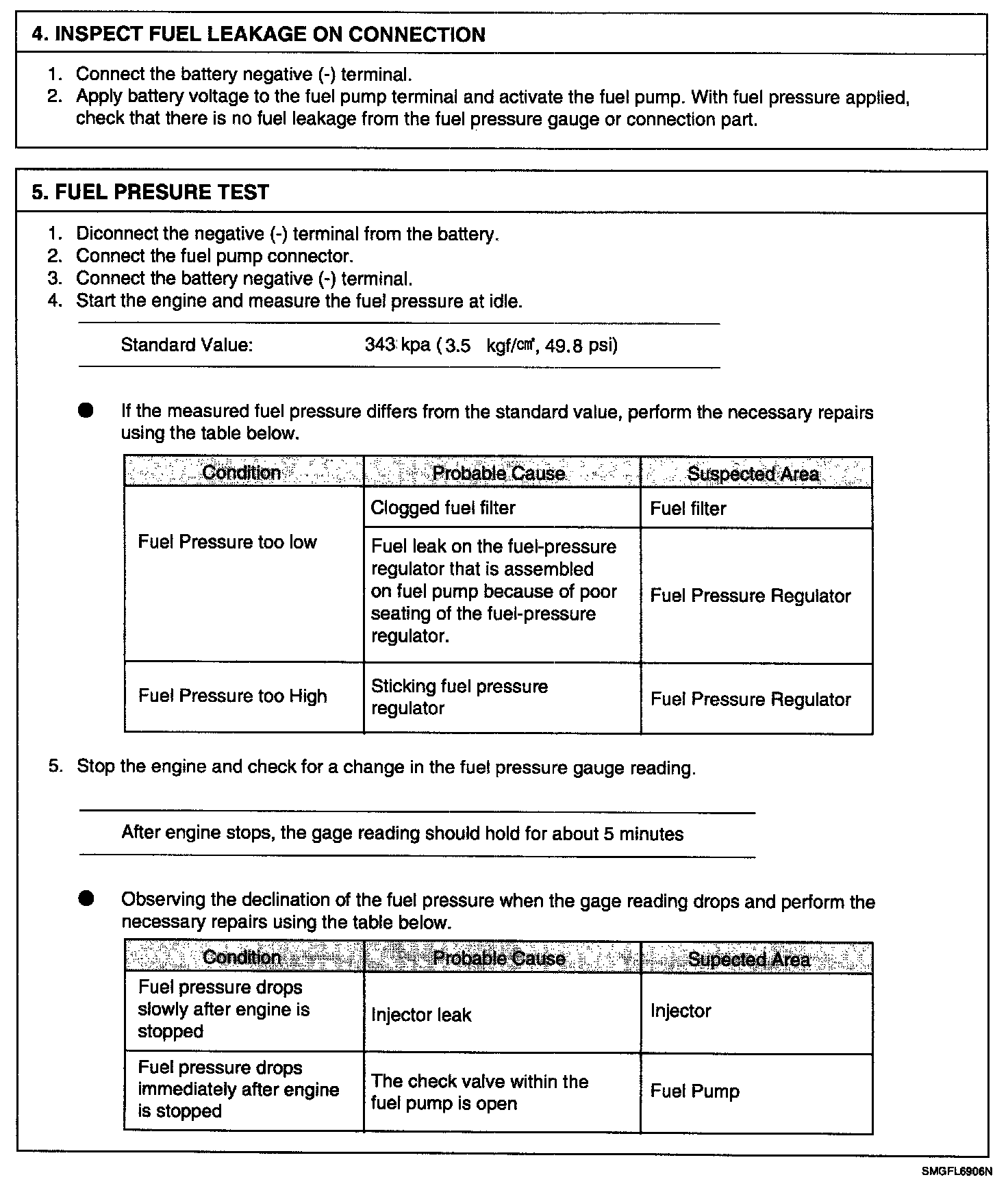

Steps 4 - 5:




Fuel Pressure Test Part 6 - 8:
