Home >> Kia >> 2008 >> Spectra L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Positive Crankcase Ventilation >> Positive Crankcase Ventilation Valve >> Description and Operation

Positive Crankcase Ventilation Valve: Description and Operation





OPERATION

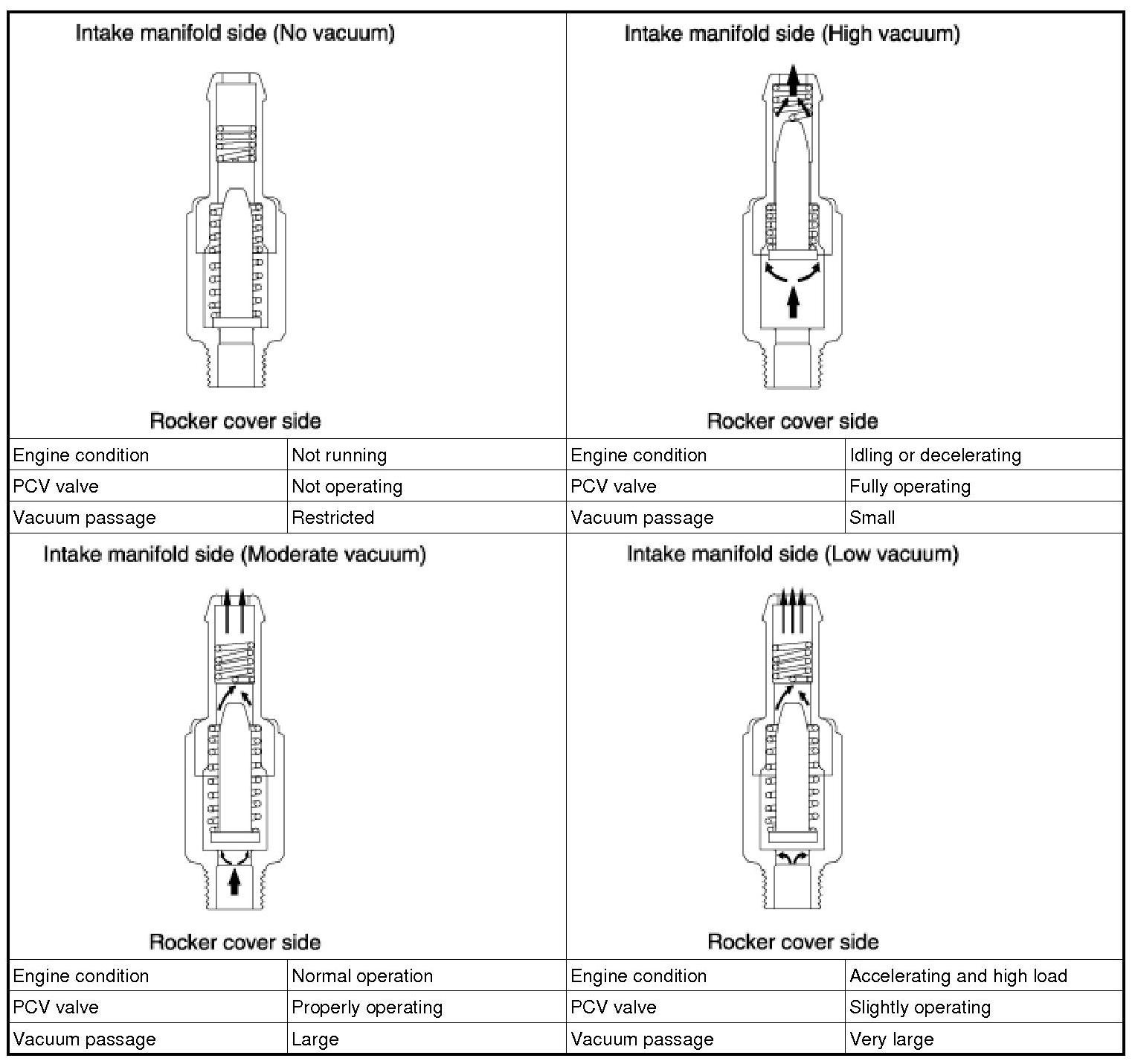

Positive Crankcase Ventilation (PCV) Valve - Operations:
