Monitors, Trips, Drive Cycles and Readiness Codes

CONFIGURATION DRIVING PATTERN RELATED TO DTC

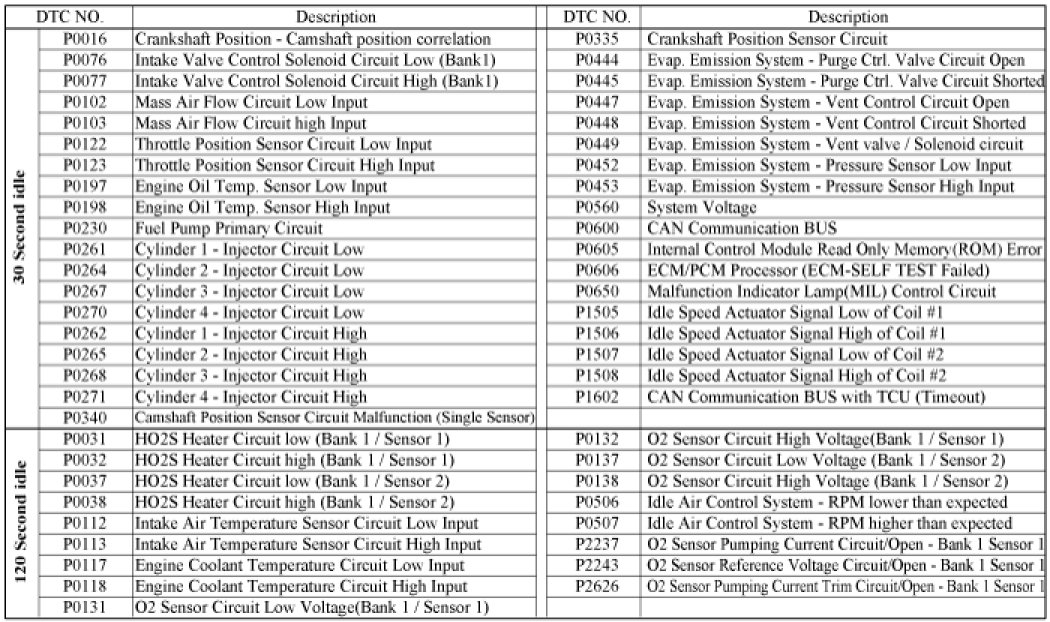

1. Idle Test Mode (Comprehensive Component)





NOTE:
1. Connect Hi-Scan (Pro) to the Data Link Connector (DLC).
2. Select the DTC function of Hi-Scan (Pro).
3. Start the engine and let the engine at idle for 30 seconds or 120 seconds as mentioned in table above respectively.
4. The given time in above table is the required time after starting the engine with warmed-up vehicle.

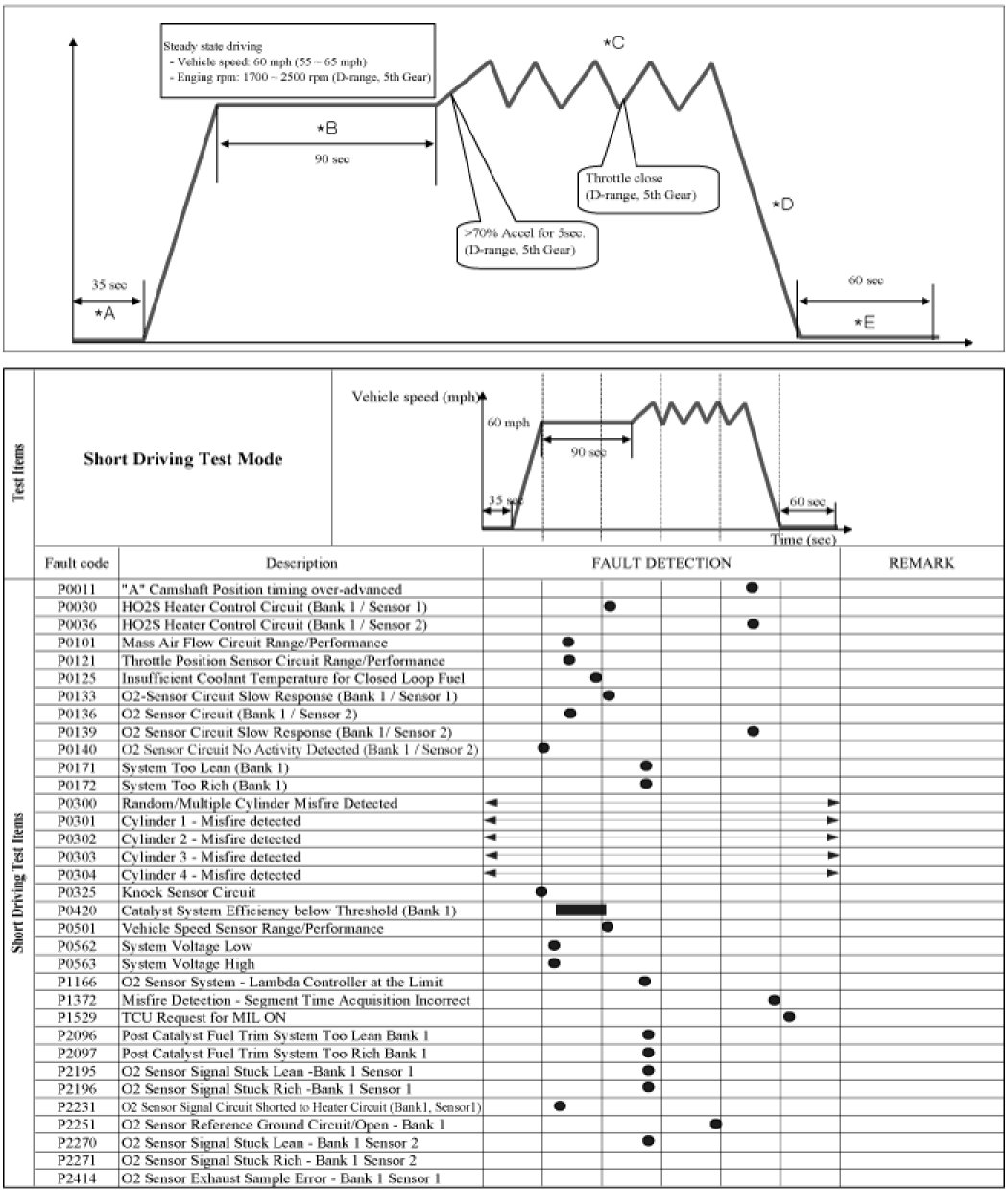

2. Short Driving Test Mode





NOTE:
1. Connect Hi-Scan (Pro) to the Data Link Connector (DLC).
2. Select the DTC function of Hi-Scan (Pro).
3. Start the engine and let the engine at idle for 35 seconds or more (*A).
4. Drive the vehicle at 60 mph (55 - 65 mph) for 90 seconds or more (*B).
5. Accelerate the vehicle with high acceleration (more than 70% of TPS) for 5 seconds and decelerate with closed throttle for 7 seconds more than five times(*C), then decelerate the vehicle to stop (*D).
6. Let the engine at idle for 60 seconds or more (*E).

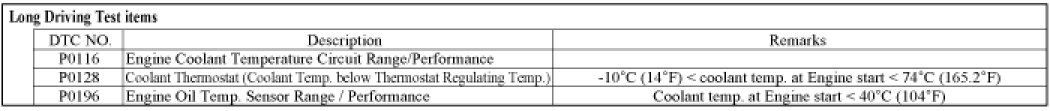

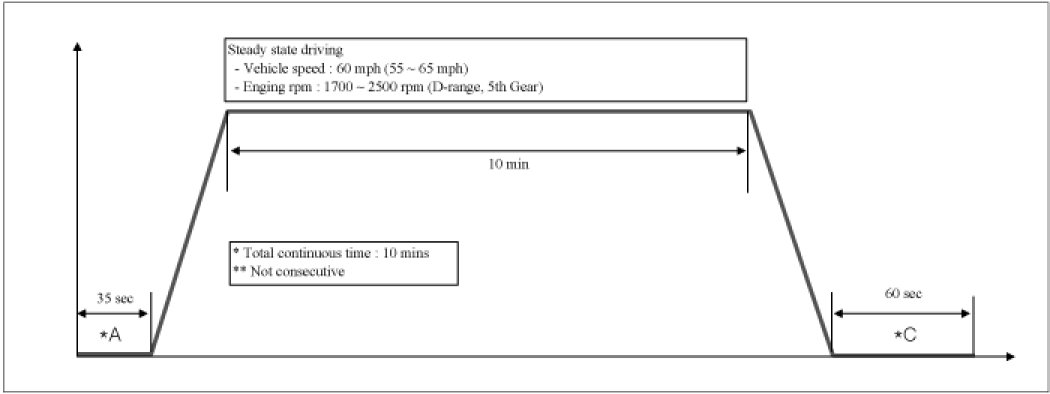

3. Long Driving Test Mode









NOTE:
1. Connect Hi-Scan (Pro) to the Data Link Connector (DLC).
2. Select the DTC function of Hi-Scan (Pro).
3. Start the engine and let the engine at idle for 35 seconds or more (*A).
4. Drive the vehicle at 60 mph (55 - 65 mph) for 10 minutes or more and decrease the vehicle speed until it stops (*B).
5. Let the engine at idle for 60 seconds or more (*C).





NOTE:
1. Connect Hi-Scan (Pro) to the Data Link Connector (DLC).

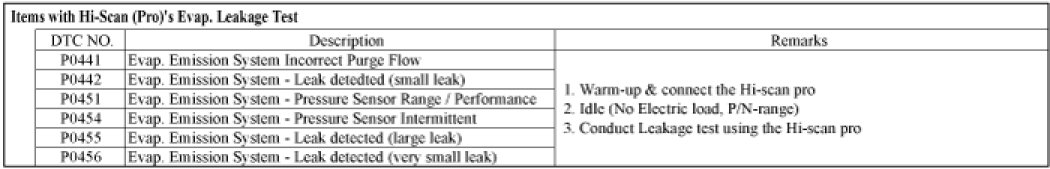

2. Select "EVAP LEAKAGE TEST" mode of Hi-Scan (Pro).
3. Check the same code reoccur.
